LRF3W-R020JW

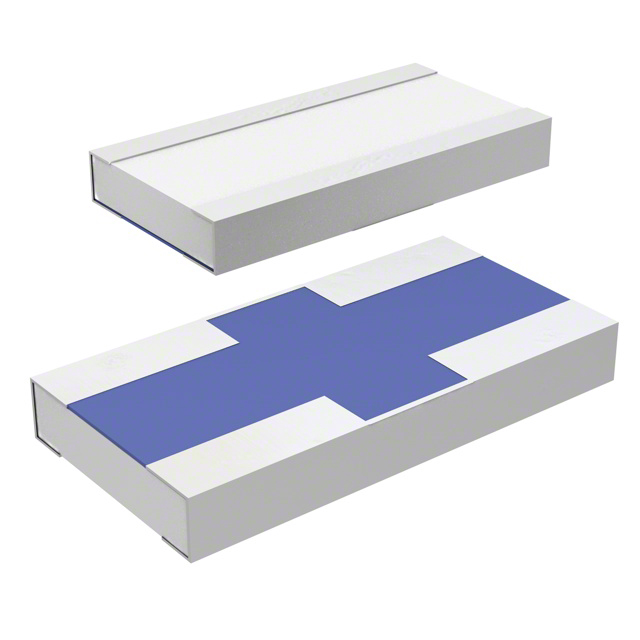

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LRF3W-R020JW with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LRF3W-R020JW with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LRF3W-R020JW |
|---|---|
| Manufacturer | TT Electronics |
| Description | RES 0.02 OHM 3W 2512 WIDE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LRF3W-R020JW | Manufacturer | TT Electronics |
|---|---|---|---|
| Description | RES 0.02 OHM 3W 2512 WIDE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4851 pcs | Data sheet | LRF3W Series |
| Category | Resistors | Tolerance | ±5% |
| Temperature Coefficient | ±100ppm/°C | Supplier Device Package | 1225 |
| Size / Dimension | 0.125" L x 0.250" W (3.18mm x 6.35mm) | Series | LRF3W |
| Resistance | 20 mOhms | Power (Watts) | 3W |
| Packaging | Cut Tape (CT) | Package / Case | Wide 2512 (6432 Metric), 1225 |
| Other Names | 985-1225-1 | Operating Temperature | -55°C ~ 150°C |
| Number of Terminations | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.037" (0.94mm) |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Failure Rate | - |
| Detailed Description | 20 mOhms ±5% 3W Chip Resistor Wide 2512 (6432 Metric), 1225 Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film | Composition | Thick Film |
