HM78D-755470MLFTR

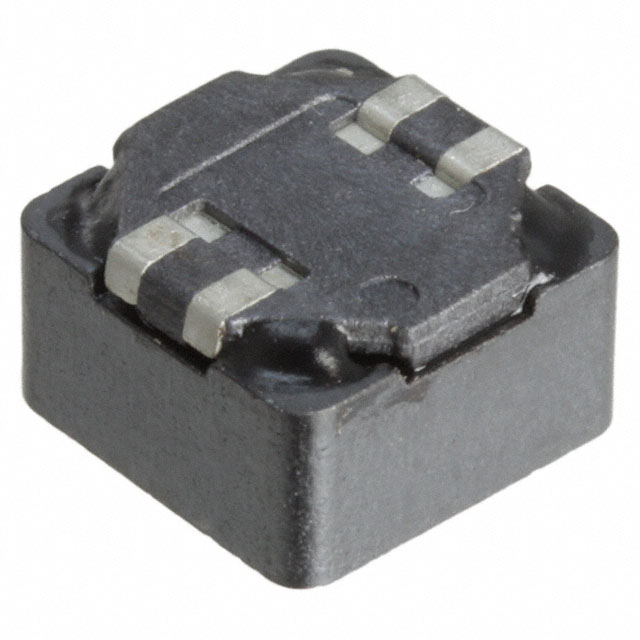

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HM78D-755470MLFTR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HM78D-755470MLFTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HM78D-755470MLFTR |
|---|---|
| Manufacturer | TT Electronics |
| Description | INDUCT ARRAY 2 COIL 47UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.581 | $0.538 | $0.389 | $0.298 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HM78D-755470MLFTR | Manufacturer | TT Electronics |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 47UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72000 pcs | Data sheet | HM78D Model |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.303" L x 0.303" W (7.70mm x 7.70mm) | Shielding | Shielded |
| Series | HM78D | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 987-1442-1 | Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance - Connected In Series | 198.6µH | Inductance - Connected In Parallel | 47µH |
| Height | 0.189" (4.80mm) | Detailed Description | Shielded 2 Coil Inductor Array 198.6µH Inductance - Connected in Series 47µH Inductance - Connected in Parallel 216 mOhm DC Resistance (DCR) - Parallel 1.15A Nonstandard |
| DC Resistance (DCR) - Series | 865 mOhm | DC Resistance (DCR) - Parallel | 216 mOhm |
| Current Saturation - Series | 710mA | Current Saturation - Parallel | 1.41A |
| Current Rating - Series | 573mA | Current Rating - Parallel | 1.15A |
