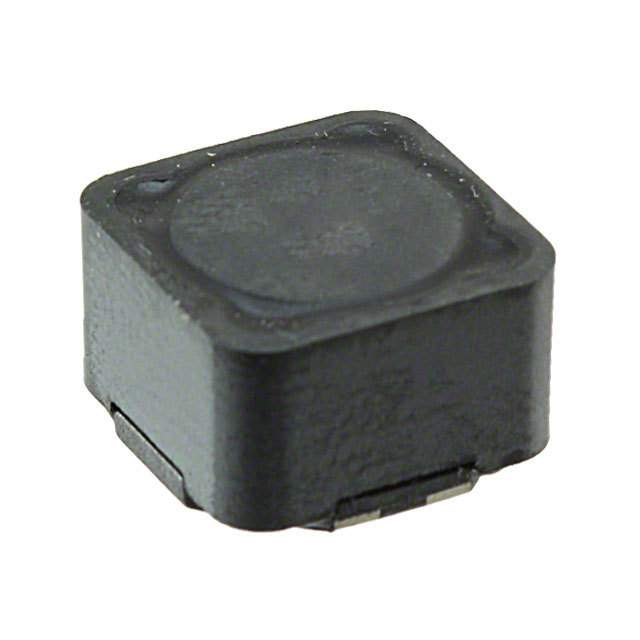

HM78D-128390MLFTR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HM78D-128390MLFTR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HM78D-128390MLFTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HM78D-128390MLFTR |
|---|---|
| Manufacturer | TT Electronics |
| Description | INDUCT ARRAY 2 COIL 39UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HM78D-128390MLFTR | Manufacturer | TT Electronics |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 39UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4246 pcs | Data sheet | HM78D Model |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | HM78D | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Operating Temperature | -40°C ~ 125°C | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 156µH |
| Inductance - Connected In Parallel | 39µH | Height | 0.317" (8.05mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 156µH Inductance - Connected in Series 39µH Inductance - Connected in Parallel 80 mOhm DC Resistance (DCR) - Parallel 3.6A Nonstandard | DC Resistance (DCR) - Series | 320 mOhm |
| DC Resistance (DCR) - Parallel | 80 mOhm | Current Saturation - Series | 2.8A |
| Current Saturation - Parallel | 5.5A | Current Rating - Series | 1.6A |
| Current Rating - Parallel | 3.6A |
