HM78D-12108R2MLFTR

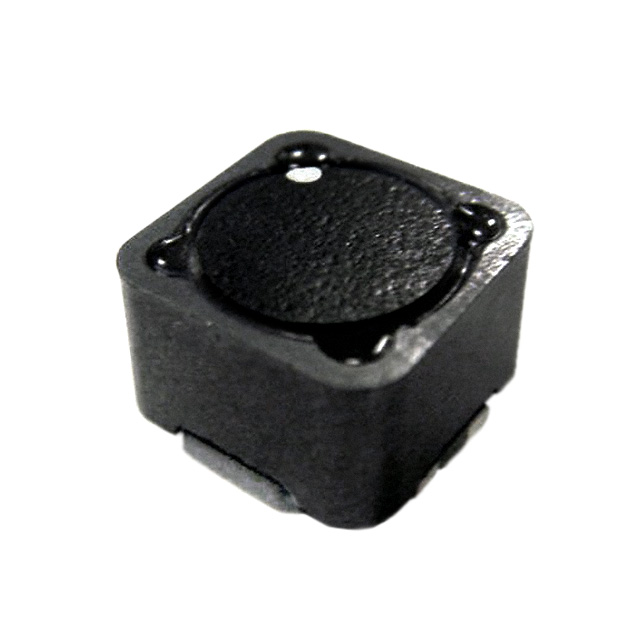

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HM78D-12108R2MLFTR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HM78D-12108R2MLFTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HM78D-12108R2MLFTR |
|---|---|
| Manufacturer | TT Electronics |
| Description | INDUCT ARRAY 2 COIL 8.2UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.971 | $0.898 | $0.629 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HM78D-12108R2MLFTR | Manufacturer | TT Electronics |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 8.2UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61479 pcs | Data sheet | HM78D Model |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | HM78D | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 987-1450-1 | Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance - Connected In Series | 32.8µH | Inductance - Connected In Parallel | 8.2µH |
| Height | 0.413" (10.50mm) | Detailed Description | Shielded 2 Coil Inductor Array 32.8µH Inductance - Connected in Series 8.2µH Inductance - Connected in Parallel 18 mOhm Max DC Resistance (DCR) - Parallel 2.25A Nonstandard |
| DC Resistance (DCR) - Series | 72 mOhm Max | DC Resistance (DCR) - Parallel | 18 mOhm Max |
| Current Saturation - Series | 6.45A | Current Saturation - Parallel | 12.85A |
| Current Rating - Series | 1.125A | Current Rating - Parallel | 2.25A |
