Home > Products > Inductors, Coils, Chokes > Fixed Inductors > HM66-80331LFTR13

HM66-80331LFTR13

HM66-80331LFTR13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HM66-80331LFTR13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HM66-80331LFTR13
Manufacturer	TT Electronics
Description	FIXED IND 330UH 700MA 1.09 OHM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5706 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	HM66-80331LFTR13	Manufacturer	TT Electronics
Description	FIXED IND 330UH 700MA 1.09 OHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5706 pcs	Data sheet	HM66 Model
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.402" L x 0.394" W (10.20mm x 10.00mm)	Shielding	Shielded
Series	HM66	Ratings	-
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	330µH
Height - Seated (Max)	0.157" (4.00mm)	Frequency - Self Resonant	-
Detailed Description	330µH Shielded Wirewound Inductor 700mA 1.09 Ohm Max Nonstandard	DC Resistance (DCR)	1.09 Ohm Max
Current Rating	700mA	Current - Saturation	-

Related products
Related news

Related products

HM66-80470LFTR13 Image

Part#:~~HM66-80470LFTR13~~
Manufacturers:~~TT Electronics/BI Magnetics~~
Description:~~FIXED IND 47UH 2.1A 128 MOHM SMD~~
In Stock:~~4773~~

Part#:~~HM66A-0312100MLF13~~
Manufacturers:~~TT Electronics~~
Description:~~FIXED IND 10UH 330MA 780 MOHM~~
In Stock:~~4119~~

HM66-80101LFTR13 Image

Part#:~~HM66-80101LFTR13~~
Manufacturers:~~TT Electronics~~
Description:~~FIXED IND 100UH 1.35A 304 MOHM~~
In Stock:~~4723~~

HM66-807R0LFTR13 Image

Part#:~~HM66-807R0LFTR13~~
Manufacturers:~~TT Electronics~~
Description:~~FIXED IND 7UH 4.8A 27 MOHM SMD~~
In Stock:~~4411~~

Part#:~~HM66A-03121R2NLF13~~
Manufacturers:~~TT Electronics~~
Description:~~FIXED IND 1.2UH 850MA 117 MOHM~~
In Stock:~~4992~~

Part#:~~HM66A-03122R2NLF13~~
Manufacturers:~~TT Electronics~~
Description:~~FIXED IND 2.2UH 700MA 182 MOHM~~
In Stock:~~4885~~

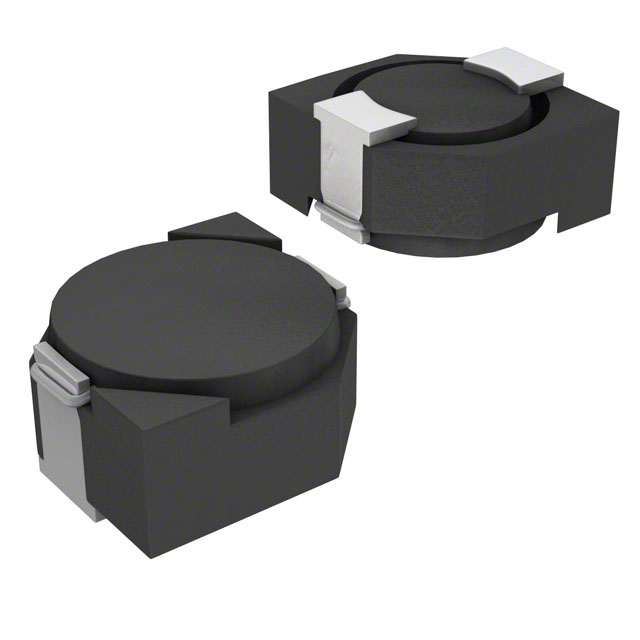

HM66-80151LFTR13 Image
