Home > Products > Inductors, Coils, Chokes > Fixed Inductors > HM66-60120LFTR13

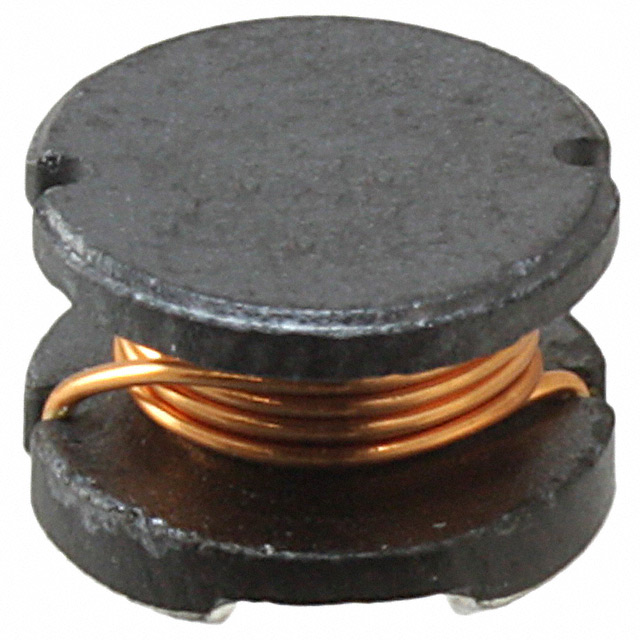

HM66-60120LFTR13

HM66-60120LFTR13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HM66-60120LFTR13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HM66-60120LFTR13
Manufacturer	TT Electronics
Description	FIXED IND 12UH 1.55A 70 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 87011 pcs
Reference Price (In US Dollars)	1500 pcs	3000 pcs
Reference Price (In US Dollars)	$0.245	$0.237

Product parameter
Data sheet

Product parameter

Part Number	HM66-60120LFTR13	Manufacturer	TT Electronics
Description	FIXED IND 12UH 1.55A 70 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	87011 pcs	Data sheet	HM66 Model
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.264" L x 0.264" W (6.70mm x 6.70mm)	Shielding	Shielded
Series	HM66	Ratings	-
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	987-1212-2 HM66-60120LFTR7 HM6660120LFTR13
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	10kHz
Inductance	12µH	Height - Seated (Max)	0.118" (3.00mm)
Frequency - Self Resonant	-	Detailed Description	12µH Shielded Wirewound Inductor 1.55A 70 mOhm Max Nonstandard
DC Resistance (DCR)	70 mOhm Max	Current Rating	1.55A
Current - Saturation	-
