HA55L-3623220LF

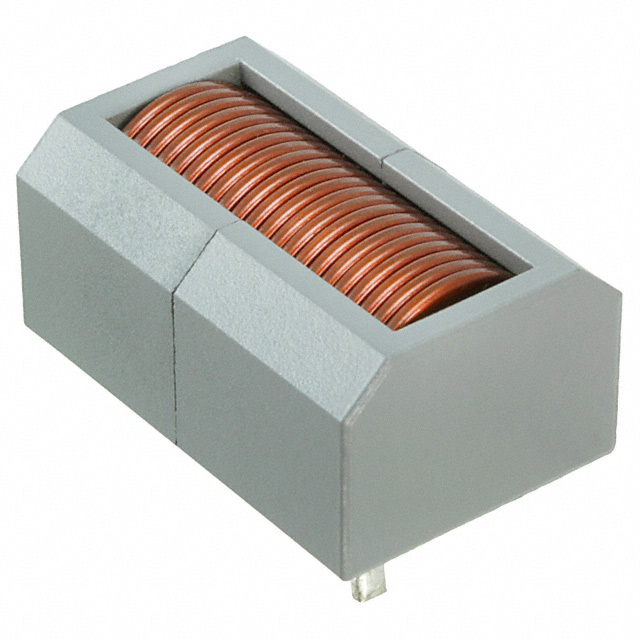

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HA55L-3623220LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HA55L-3623220LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HA55L-3623220LF |
|---|---|
| Manufacturer | TT Electronics |
| Description | FIXED IND 22UH 34A 3.85 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HA55L-3623220LF | Manufacturer | TT Electronics |
|---|---|---|---|
| Description | FIXED IND 22UH 34A 3.85 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5055 pcs | Data sheet | HA55 Model |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | - | Supplier Device Package | - |
| Size / Dimension | 1.417" L x 0.906" W (36.00mm x 23.00mm) | Shielding | Shielded |
| Series | HA55 | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Nonstandard | Other Names | 987-1481 HA55L3623220LF |
| Operating Temperature | -40°C ~ 155°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 22µH | Height - Seated (Max) | 0.669" (17.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 22µH Shielded Wirewound Inductor 34A 3.85 mOhm Max Nonstandard |
| DC Resistance (DCR) | 3.85 mOhm Max | Current Rating | 34A |
| Current - Saturation | 26A |
