YBS2205G RAG

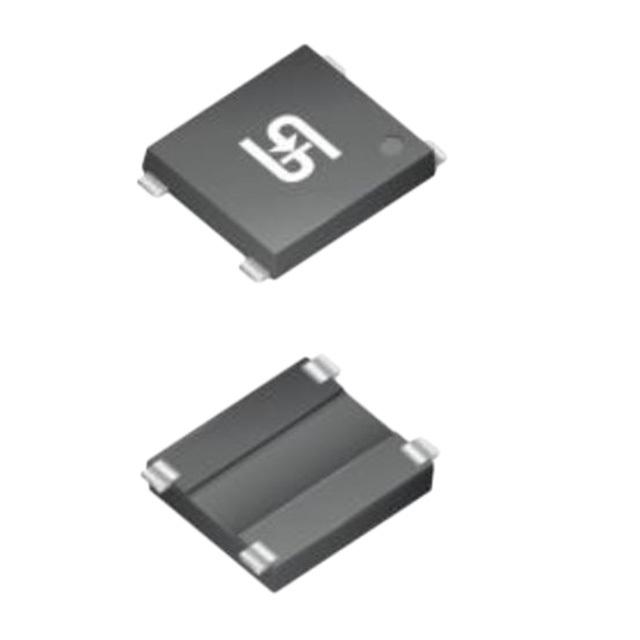

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy YBS2205G RAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy YBS2205G RAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | YBS2205G RAG |
|---|---|
| Manufacturer | TSC (Taiwan Semiconductor) |
| Description | BRIDGE RECT 1PHASE 600V 2.2A YBS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.052 | $0.048 | $0.045 | $0.043 | $0.042 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | YBS2205G RAG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | BRIDGE RECT 1PHASE 600V 2.2A YBS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 562321 pcs | Data sheet | YBS2204G - YBS2207G |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 600V |
| Voltage - Forward (Vf) (Max) @ If | 970mV @ 2.2A | Technology | Standard |
| Supplier Device Package | YBS | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, Flat Leads |
| Other Names | YBS2205G RAGTR YBS2205G RAGTR-ND YBS2205GRAGTR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Single Phase | Detailed Description | Bridge Rectifier Single Phase Standard 600V Surface Mount YBS |
| Current - Reverse Leakage @ Vr | 5µA @ 600V | Current - Average Rectified (Io) | 2.2A |
