TSPB20U80S S1G

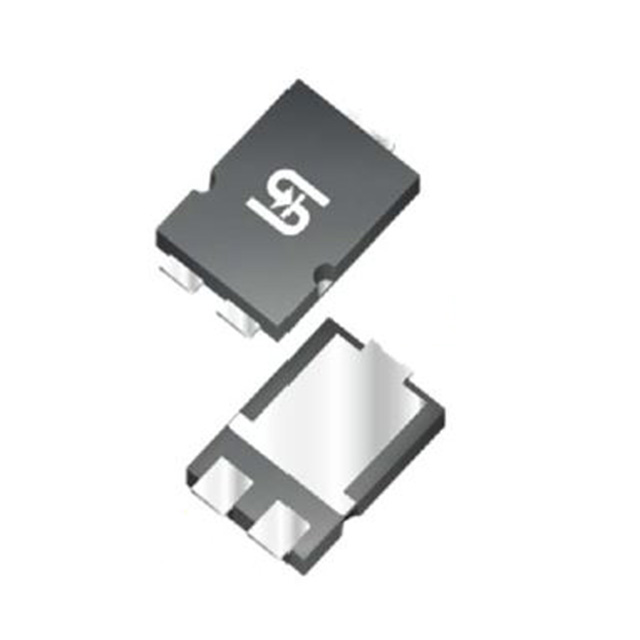

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSPB20U80S S1G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSPB20U80S S1G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSPB20U80S S1G |
|---|---|
| Manufacturer | TSC (Taiwan Semiconductor) |
| Description | DIODE SCHOTTKY 80V 20A SMPC4.0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.379 | $0.337 | $0.267 | $0.207 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSPB20U80S S1G | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | DIODE SCHOTTKY 80V 20A SMPC4.0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102947 pcs | Data sheet | TSPB20U80S |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 640mV @ 20A |
| Voltage - DC Reverse (Vr) (Max) | 80V | Supplier Device Package | SMPC4.0 |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Packaging | Original-Reel® | Package / Case | TO-277, 3-PowerDFN |
| Other Names | TSPB20U80S S1GDKR TSPB20U80S S1GDKR-ND TSPB20U80SS1GDKR |
Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 28 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Detailed Description | Diode Schottky 80V 20A Surface Mount SMPC4.0 |
| Current - Reverse Leakage @ Vr | 300µA @ 80V | Current - Average Rectified (Io) | 20A |
| Capacitance @ Vr, F | - |
