TSM500P02DCQ RFG

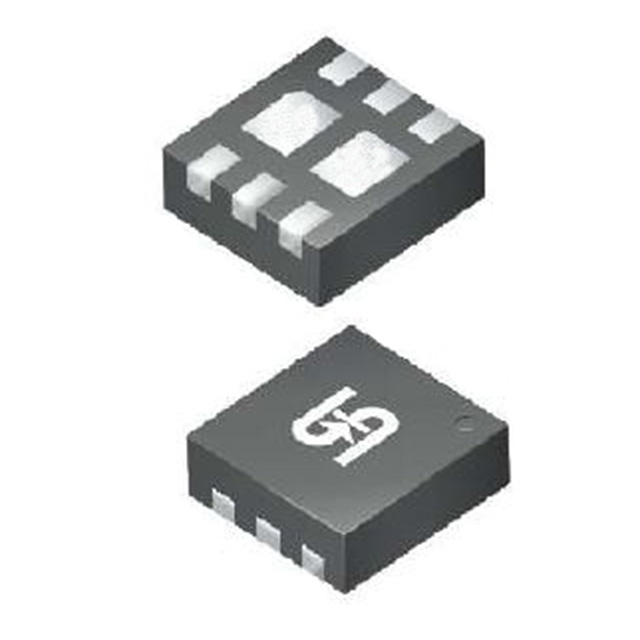

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM500P02DCQ RFG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM500P02DCQ RFG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM500P02DCQ RFG |
|---|---|
| Manufacturer | TSC (Taiwan Semiconductor) |
| Description | MOSFET 2 P-CH 20V 4.7A 6TDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.213 | $0.179 | $0.134 | $0.098 | $0.076 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM500P02DCQ RFG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET 2 P-CH 20V 4.7A 6TDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 282688 pcs | Data sheet | TSM500P02D |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Supplier Device Package | 6-TDFN (2x2) | Series | - |
| Rds On (Max) @ Id, Vgs | 50 mOhm @ 3A, 4.5V | Power - Max | 620mW |
| Packaging | Cut Tape (CT) | Package / Case | 6-VDFN Exposed Pad |
| Other Names | TSM500P02DCQ RFGCT TSM500P02DCQ RFGCT-ND TSM500P02DCQRFGCT |
Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 28 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1230pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 9.6nC @ 4.5V |
| FET Type | 2 P-Channel (Dual) | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | Mosfet Array 2 P-Channel (Dual) 20V 4.7A (Tc) 620mW Surface Mount 6-TDFN (2x2) |
| Current - Continuous Drain (Id) @ 25°C | 4.7A (Tc) |
