TSM2N60SCW RPG

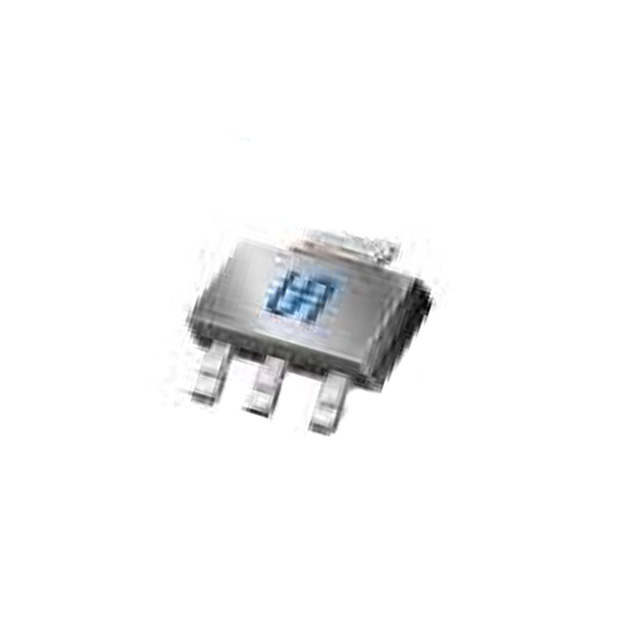

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM2N60SCW RPG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM2N60SCW RPG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM2N60SCW RPG |
|---|---|
| Manufacturer | TSC (Taiwan Semiconductor) |
| Description | MOSFET N-CH 600V 600MA SOT223 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.286 | $0.249 | $0.192 | $0.142 | $0.114 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM2N60SCW RPG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET N-CH 600V 600MA SOT223 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 177755 pcs | Data sheet | TSM2N60S |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-223 | Series | - |
| Rds On (Max) @ Id, Vgs | 5 Ohm @ 600mA, 10V | Power Dissipation (Max) | 2.5W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | TO-261-4, TO-261AA |
| Other Names | TSM2N60SCW RPGCT TSM2N60SCW RPGCT-ND TSM2N60SCWRPGCT |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 435pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 13nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 600mA (Tc) 2.5W (Tc) Surface Mount SOT-223 | Current - Continuous Drain (Id) @ 25°C | 600mA (Tc) |
