TPC817C C9G

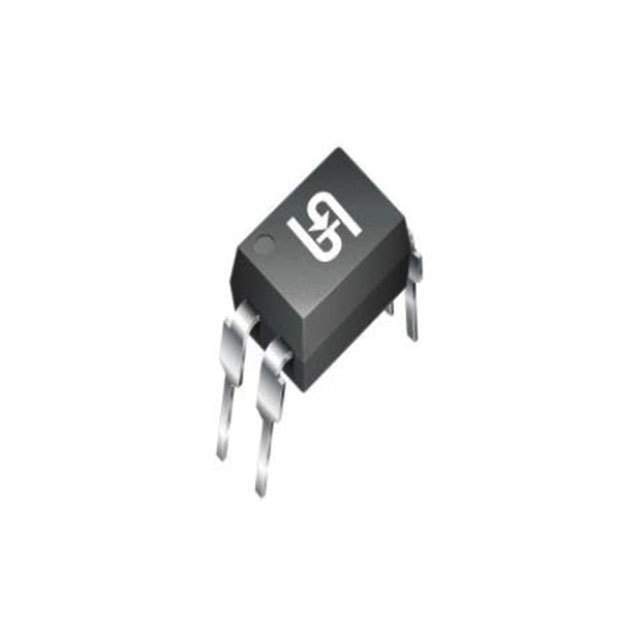

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPC817C C9G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPC817C C9G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPC817C C9G |
|---|---|
| Manufacturer | TSC (Taiwan Semiconductor) |
| Description | OPTOISO 5KV TRANS 4DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.197 | $0.143 | $0.109 | $0.071 | $0.052 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.044 | $0.036 | $0.032 | $0.028 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TPC817C C9G | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | OPTOISO 5KV TRANS 4DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 777496 pcs | Data sheet | TPC817 Series |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-DIP | Series | TPC817 |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tube |
| Package / Case | 4-DIP (0.300", 7.62mm) | Output Type | Transistor |
| Other Names | TPC817C C9G-ND TPC817CC9G |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP | Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | 400% @ 5mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA |
