Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > SS12LSHRVG

SS12LSHRVG

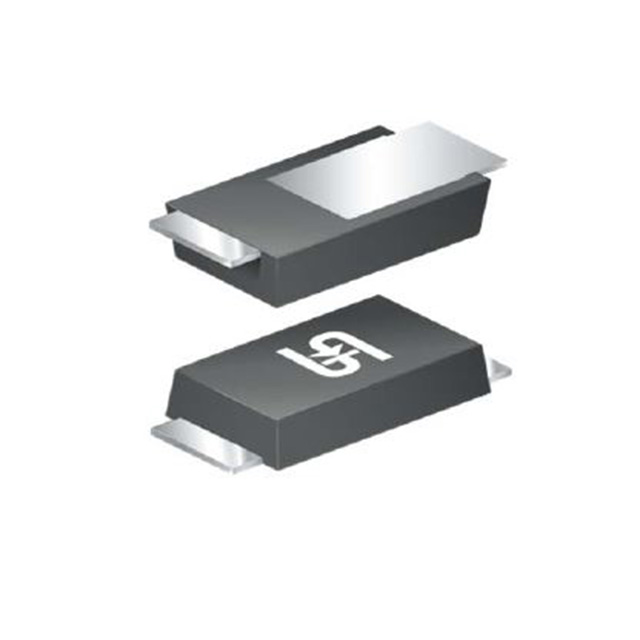

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SS12LSHRVG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SS12LSHRVG
Manufacturer	TSC (Taiwan Semiconductor)
Description	DIODE SCHOTTKY 20V 1A SOD123HE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1460576 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs	30000 pcs	75000 pcs
Reference Price (In US Dollars)	$0.025	$0.023	$0.02	$0.019	$0.017

Product parameter
Data sheet

Product parameter

Part Number	SS12LSHRVG	Manufacturer	TSC (Taiwan Semiconductor)
Description	DIODE SCHOTTKY 20V 1A SOD123HE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1460576 pcs	Data sheet	SS12LS - SS115LS
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	450mV @ 1A
Voltage - DC Reverse (Vr) (Max)	20V	Supplier Device Package	SOD-123HE
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOD-123H
Other Names	SS12LSHRVGTR	Operating Temperature - Junction	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 20V 1A Surface Mount SOD-123HE
Current - Reverse Leakage @ Vr	400µA @ 20V	Current - Average Rectified (Io)	1A
Capacitance @ Vr, F	80pF @ 4V, 1MHz
