Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > MBR2550CTHC0G

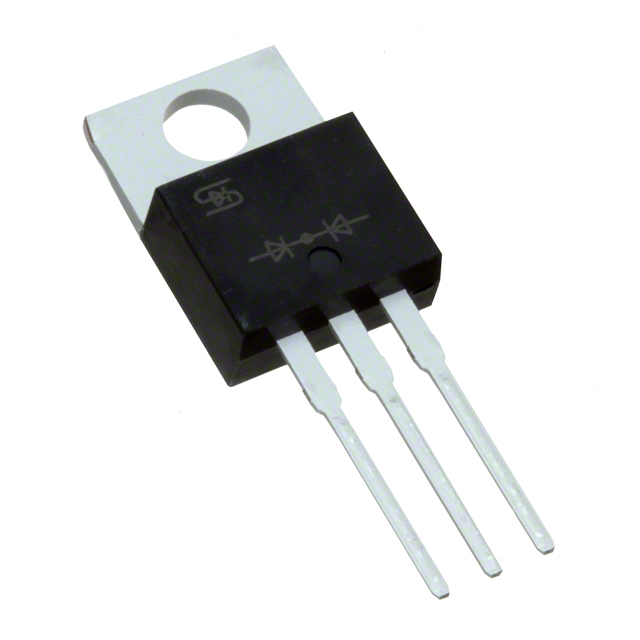

MBR2550CTHC0G

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MBR2550CTHC0G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MBR2550CTHC0G
Manufacturer	TSC (Taiwan Semiconductor)
Description	DIODE ARRAY SCHOTTKY 50V TO220AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 124030 pcs
Reference Price (In US Dollars)	5000 pcs
Reference Price (In US Dollars)	$0.173

Product parameter
Data sheet

Product parameter

Part Number	MBR2550CTHC0G	Manufacturer	TSC (Taiwan Semiconductor)
Description	DIODE ARRAY SCHOTTKY 50V TO220AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	124030 pcs	Data sheet	MBR2535CT - MBR25150CT
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	750mV @ 25A
Voltage - DC Reverse (Vr) (Max)	50V	Supplier Device Package	TO-220AB
Speed	Fast Recovery = 200mA (Io)	Series	Automotive, AEC-Q101
Packaging	Tube	Package / Case	TO-220-3
Operating Temperature - Junction	-55°C ~ 150°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Schottky 50V 25A Through Hole TO-220-3
Current - Reverse Leakage @ Vr	200µA @ 50V	Current - Average Rectified (Io) (per Diode)	25A
