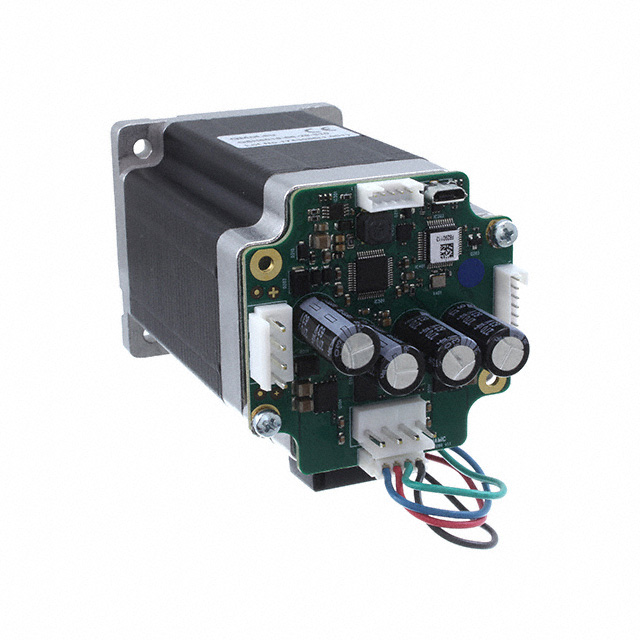

PD-60-4-1260-CANOPEN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD-60-4-1260-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD-60-4-1260-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD-60-4-1260-CANOPEN |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | PANDRIVE NEMA24, 48V, 3.1NM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $125.908 | $104.348 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD-60-4-1260-CANOPEN | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | PANDRIVE NEMA24, 48V, 3.1NM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 363 pcs | Data sheet | PD-1260 CANOPEN Firmware ManualPD-1260 Hardware Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Voltage - Rated | 6.8VDC |
| Type | Hybrid | Torque - Holding (oz-in / mNm) | 438.99 / 3100 |
| Termination Style | Wire Leads with Connector | Steps per Revolution | 200 |
| Step Angle | 1.8° | Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| Series | PANdrive™ | Rotor Inertia | 840gcm² |
| Other Names | 1460-1284 30-0320 |
Operating Temperature | -20°C ~ 50°C |
| NEMA Frame Size | 24 | Mounting Hole Spacing | 1.856" (47.14mm) |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 8 Weeks |
| Length - Shaft and Bearing | 0.945" (24.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Integrated Controller, Flatted Shaft | Diameter - Shaft | 0.315" (8.00mm) |
| Detailed Description | Bipolar Stepper Motor Hybrid Frame Size 24 200 Step 2.8A 6.8VDC | Current Rating | 2.8A |
| Coil Type | Bipolar | Approvals | - |
| Accuracy | - |
