TIM 3.5-4822SM

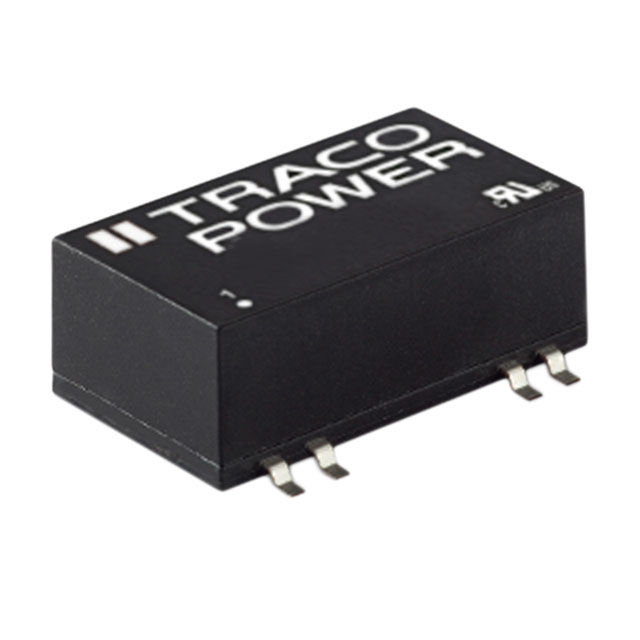

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TIM 3.5-4822SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TIM 3.5-4822SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TIM 3.5-4822SM |
|---|---|
| Manufacturer | TRACO Power |
| Description | DC DC CONVERTER +/-12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $16.202 | $15.552 | $15.058 | $14.318 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $13.33 | $13.133 | $11.849 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TIM 3.5-4822SM | Manufacturer | TRACO Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3120 pcs | Data sheet | TIM 3.5SM Series, 3.5 Watt Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | -12V |
| Voltage - Output 1 | 12V | Voltage - Isolation | 5kV |
| Voltage - Input (Min) | 36V | Voltage - Input (Max) | 75V |
| Type | Isolated Module | Supplier Device Package | - |
| Size / Dimension | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | Series | TIM 3.5SM |
| Power (Watts) | 3.5W | Package / Case | 16-SMD Module, 7 Leads |
| Other Names | 1951-1980 | Operating Temperature | -40°C ~ 90°C (With Derating) |
| Number of Outputs | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Remote On/Off, OVP, SCP |
| Efficiency | 81% | Detailed Description | Isolated Module DC DC Converter 2 Output 12V -12V 146mA, 146mA 36V - 75V Input |
| Current - Output (Max) | 146mA, 146mA | Applications | Medical |
