Home > Products > Power Supplies - External/Internal (Off-Board) > AC DC Converters > ZWS75BAF12

ZWS75BAF12

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZWS75BAF12 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZWS75BAF12
Manufacturer	TDK-Lambda Americas, Inc.
Description	AC/DC CONVERTER 12V 75W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1297 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$25.832	$25.386

Product parameter
Data sheet

Product parameter

Part Number	ZWS75BAF12	Manufacturer	TDK-Lambda Americas, Inc.
Description	AC/DC CONVERTER 12V 75W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1297 pcs	Data sheet	ZWS-BAF Series Instr Manual ZWS75BAF Spec ZWSBAF Series Datasheet ZWS75BAF Drawing
Category	Power Supplies - External/Internal (Off-Board)	Voltage - Output 4	-
Voltage - Output 3	-	Voltage - Output 2	-
Voltage - Output 1	12V	Voltage - Isolation	3kV
Voltage - Input	85 ~ 265 VAC	Type	Open Frame
Size / Dimension	5.90" L x 1.97" W x 1.30" H (150.0mm x 50.0mm x 33.0mm)	Series	ZWS-AF
Power (Watts)	75W	Other Names	285-2111 ZWS75BAF-12
Operating Temperature	-10°C ~ 70°C (With Derating)	Number of Outputs	1
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Minimum Load Required	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Efficiency	83%	Detailed Description	Open Frame AC DC Converter 1 Output 12V 6.3A 85 ~ 265 VAC Input
Current - Output (Max)	6.3A	Approvals	CE
Applications	ITE (Commercial)

Related products
Related news

Related products

ZWS75BAF-15/CO2 Image

Part#:~~ZWS75BAF-15/CO2~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CONVERTER 15V 75W~~
In Stock:~~1022~~

~~$30.133/pcs~~RFQ

ZWS75BAF-5/CO2 Image

Part#:~~ZWS75BAF-5/CO2~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CONVERTER 5V 75W~~
In Stock:~~1227~~

~~$30.276/pcs~~RFQ

ZWS75BAF48 Image

Part#:~~ZWS75BAF48~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CONVERTER 48V 75W~~
In Stock:~~1511~~

~~$25.75/pcs~~RFQ

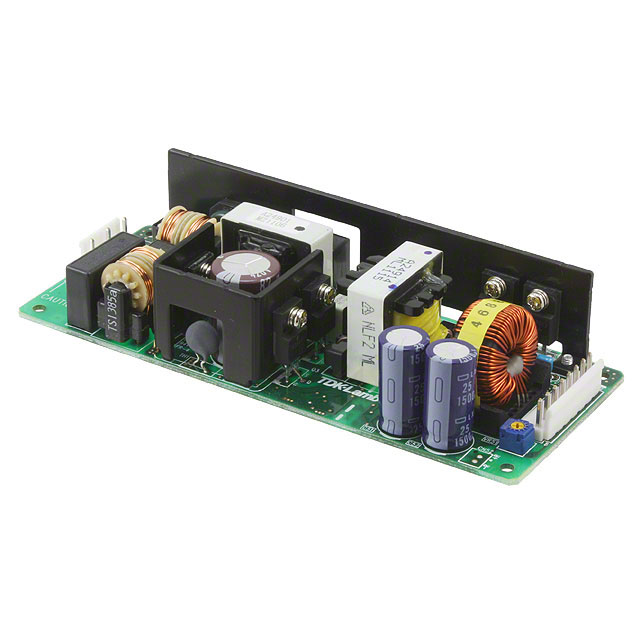

ZWS75BAF5 Image
