Home > Products > Power Supplies - External/Internal (Off-Board) > AC DC Converters > ZWQ805223

ZWQ805223

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZWQ805223 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZWQ805223
Manufacturer	TDK-Lambda Americas, Inc.
Description	AC/DC CNVRTR 5V +/-12V 3.3V 80W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 757 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$52.514	$50.739

Product parameter
Data sheet

Product parameter

Part Number	ZWQ805223	Manufacturer	TDK-Lambda Americas, Inc.
Description	AC/DC CNVRTR 5V +/-12V 3.3V 80W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	757 pcs	Data sheet	ZWQ Series ZWQ Install Manual
Category	Power Supplies - External/Internal (Off-Board)	Voltage - Output 4	3.3V
Voltage - Output 3	-12V	Voltage - Output 2	12V
Voltage - Output 1	5V	Voltage - Isolation	3kV
Voltage - Input	85 ~ 265 VAC	Type	Open Frame
Size / Dimension	8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm)	Series	ZWQ
Power (Watts)	80W	Other Names	285-1692 ZWQ80-5223
Operating Temperature	-10°C ~ 60°C (With Derating)	Number of Outputs	4
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Minimum Load Required	Yes	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Adjustable Output, PFC, Universal Input
Efficiency	72%	Detailed Description	Open Frame AC DC Converter 4 Output 5V 12V -12V 3.3V 8A, 2A, 2A, 7A 85 ~ 265 VAC Input
Current - Output (Max)	8A, 2A, 2A, 7A	Approvals	CE
Applications	ITE (Commercial)

Related products
Related news

Related products

ZWQ805225 Image

Part#:~~ZWQ805225~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CONVERTER 5V +/-12V 5V 80W~~
In Stock:~~663~~

~~$51.763/pcs~~RFQ

ZWQ805222 Image

Part#:~~ZWQ805222~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CNVRTR 5V +/-12V 12V 80W~~
In Stock:~~645~~

~~$51.232/pcs~~RFQ

Part#:~~ZWQ1305223/L~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CNVRTR 5V +/-12V 3.3V 130W~~
In Stock:~~621~~

~~$60.35/pcs~~RFQ

ZWQ805222/L Image

Part#:~~ZWQ805222/L~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CNVRTR 5V +/-12V 12V 80W~~
In Stock:~~564~~

~~$56.125/pcs~~RFQ

ZWQ805223/L Image

Part#:~~ZWQ805223/L~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CNVRTR 5V +/-12V 3.3V 80W~~
In Stock:~~598~~

~~$54.829/pcs~~RFQ

Part#:~~ZWQ1305223/A~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CNVRTR 5V +/-12V 3.3V 130W~~
In Stock:~~513~~

~~$66.584/pcs~~RFQ

ZWQ1305225 Image

Part#:~~ZWQ1305225~~
Manufacturers:~~TDK-Lambda Americas, Inc.~~
Description:~~AC/DC CNVRTR 5V +/-12V 5V 130W~~
In Stock:~~536~~

~~$55.837/pcs~~RFQ

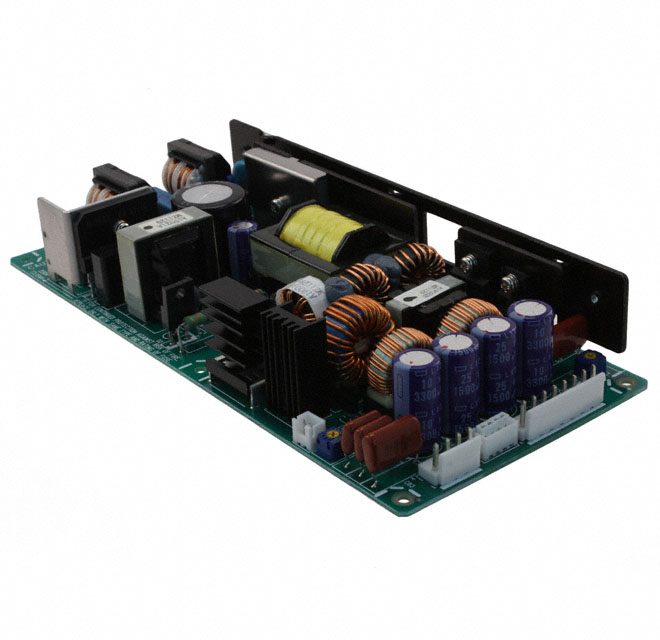

ZWQ805224 Image
