Home > Products > Power Supplies - Board Mount > DC DC Converters > PXE3024D15

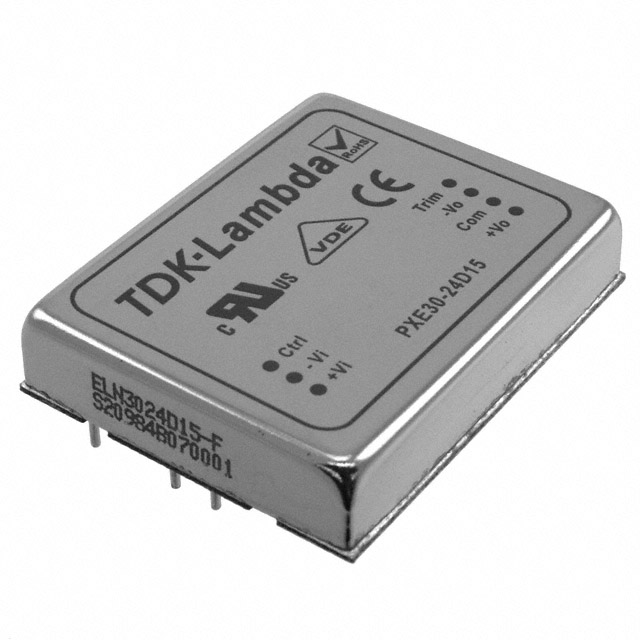

PXE3024D15

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PXE3024D15 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PXE3024D15
Manufacturer	TDK-Lambda Americas, Inc.
Description	DC DC CONVERTER +/-15V 30W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1003 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$33.319	$31.528

Product parameter
Data sheet

Product parameter

Part Number	PXE3024D15	Manufacturer	TDK-Lambda Americas, Inc.
Description	DC DC CONVERTER +/-15V 30W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1003 pcs	Data sheet	PXE30-xxDxx Datasheet PXE Series Overview PXE Dual Instr Manual
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-15V	Voltage - Output 1	15V
Voltage - Isolation	1.6kV	Voltage - Input (Min)	18V
Voltage - Input (Max)	36V	Type	Isolated Module
Size / Dimension	2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm)	Series	PXE
Power (Watts)	30W	Packaging	Bulk
Package / Case	8-DIP Module, 7 Leads	Other Names	285-1543 PXE30-24D15
Operating Temperature	-40°C ~ 100°C	Number of Outputs	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Remote On/Off, OCP, OVP, SCP	Efficiency	88%
Detailed Description	Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 18V - 36V Input	Current - Output (Max)	1A, 1A
Applications	ITE (Commercial)
