Home > Products > Power Supplies - Board Mount > DC DC Converters > PXD3024WS12

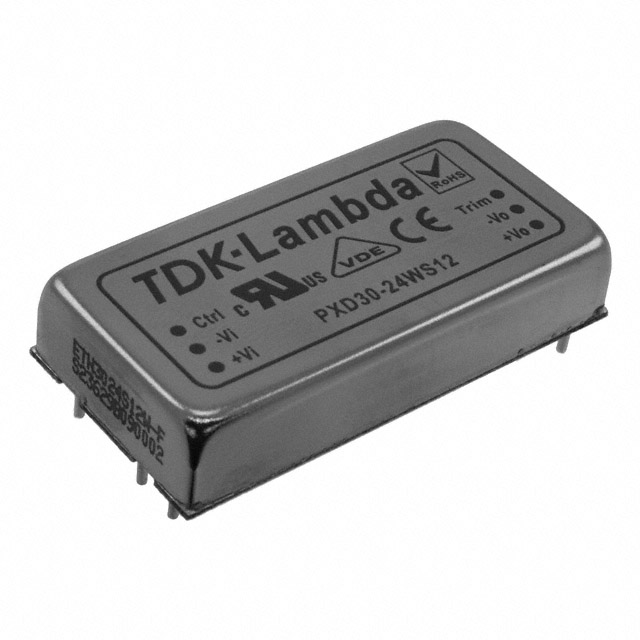

PXD3024WS12

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PXD3024WS12 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PXD3024WS12
Manufacturer	TDK-Lambda Americas, Inc.
Description	DC DC CONVERTER 12V 30W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 937 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$34.536	$32.737

Product parameter
Data sheet

Product parameter

Part Number	PXD3024WS12	Manufacturer	TDK-Lambda Americas, Inc.
Description	DC DC CONVERTER 12V 30W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	937 pcs	Data sheet	PXD30W Series Overview PXD30-xxWSxx Datasheet
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	12V
Voltage - Isolation	1.6kV	Voltage - Input (Min)	9V
Voltage - Input (Max)	36V	Type	Isolated Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)	Series	PXD30W
Power (Watts)	30W	Packaging	Tube
Package / Case	6-DIP Module	Other Names	285-1944 PXD30-24WS-12 PXD30-24WS12 PXD30-24WS12/P PXD3024WS-12 PXD3024WS12/P
Operating Temperature	-40°C ~ 85°C	Number of Outputs	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Remote On/Off, OCP, OVP, SCP	Efficiency	89%
Detailed Description	Isolated Module DC DC Converter 1 Output 12V 2.5A 9V - 36V Input	Current - Output (Max)	2.5A
Applications	ITE (Commercial)
