Home > Products > Power Supplies - Board Mount > DC DC Converters > PAH75D48-3325

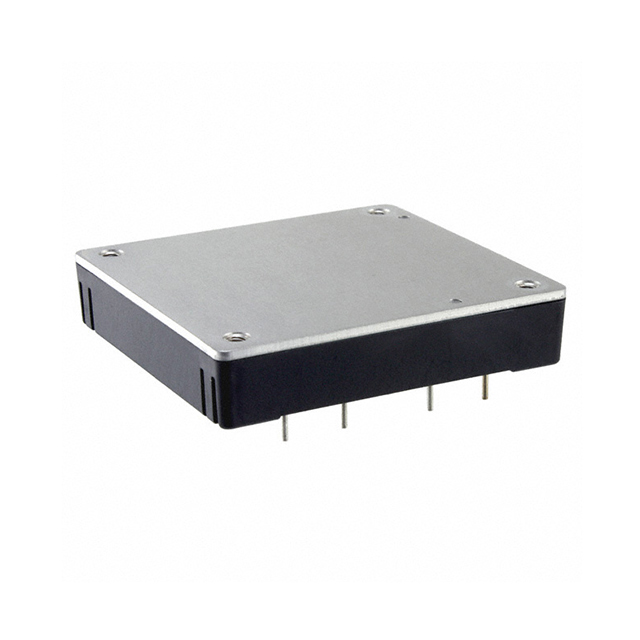

PAH75D48-3325

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PAH75D48-3325 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PAH75D48-3325
Manufacturer	TDK-Lambda Americas, Inc.
Description	DC DC CONVERTER 3.3V 2.5V 75W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4691 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PAH75D48-3325	Manufacturer	TDK-Lambda Americas, Inc.
Description	DC DC CONVERTER 3.3V 2.5V 75W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4691 pcs	Data sheet	PAH75D Series
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	2.5V	Voltage - Output 1	3.3V
Voltage - Isolation	1.5kV	Voltage - Input (Min)	36V
Voltage - Input (Max)	76V	Type	Isolated Module
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)	Series	PAH75D
Power (Watts)	75W	Packaging	Bulk
Package / Case	9-DIP Module, 1/2 Brick	Other Names	PAH75D483325
Operating Temperature	-40°C ~ 100°C	Number of Outputs	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Remote On/Off, OCP, OVP
Efficiency	78%	Detailed Description	Isolated Module DC DC Converter 2 Output 3.3V 2.5V 15A, 15A 36V - 76V Input
Current - Output (Max)	15A, 15A	Control Features	Enable, Active Low
Applications	ITE (Commercial)
