Home > Products > Power Supplies - External/Internal (Off-Board) > AC DC Converters > HTC1

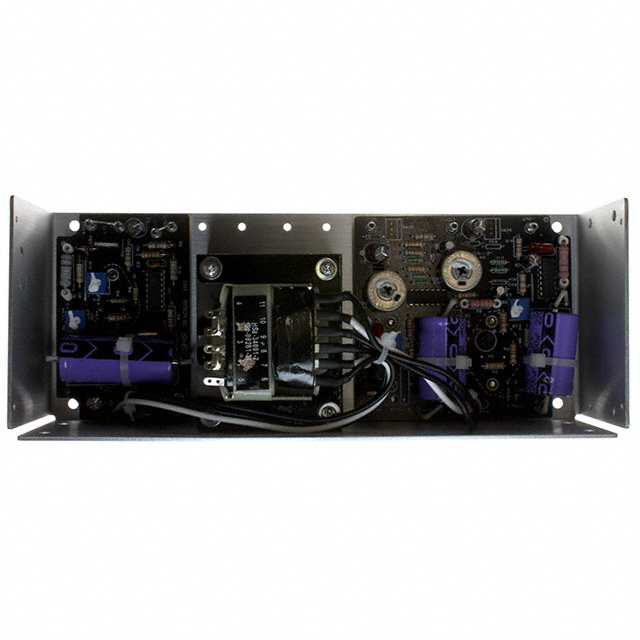

HTC1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HTC1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HTC1
Manufacturer	TDK-Lambda Americas, Inc.
Description	AC/DC CONVERTER 5V +/-12V 40W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6010 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	HTC1	Manufacturer	TDK-Lambda Americas, Inc.
Description	AC/DC CONVERTER 5V +/-12V 40W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6010 pcs	Data sheet	H Series Datasheet H Series Instr Manual
Category	Power Supplies - External/Internal (Off-Board)	Voltage - Output 4	-
Voltage - Output 3	-12V	Voltage - Output 2	12V
Voltage - Output 1	5V	Voltage - Isolation	3.75kV
Voltage - Input	100, 120, 220, 230, 240 VAC	Type	Linear
Size / Dimension	6.50" L x 4.02" W x 1.65" H (165.0mm x 102.0mm x 42.0mm)	Series	H
Power (Watts)	40W	Operating Temperature	0°C ~ 70°C (With Derating)
Number of Outputs	3	Mounting Type	Chassis Mount
Minimum Load Required	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Adjustable Output, Remote Sense, Standby Output	Efficiency	55%
Detailed Description	Linear AC DC Converter 3 Output 5V 12V -12V 3A, 1A, 1A 100, 120, 220, 230, 240 VAC Input	Current - Output (Max)	3A, 1A, 1A
Approvals	CE	Applications	ITE (Commercial)
