Home > Products > Power Supplies - External/Internal (Off-Board) > LED Drivers > ALC100224R0

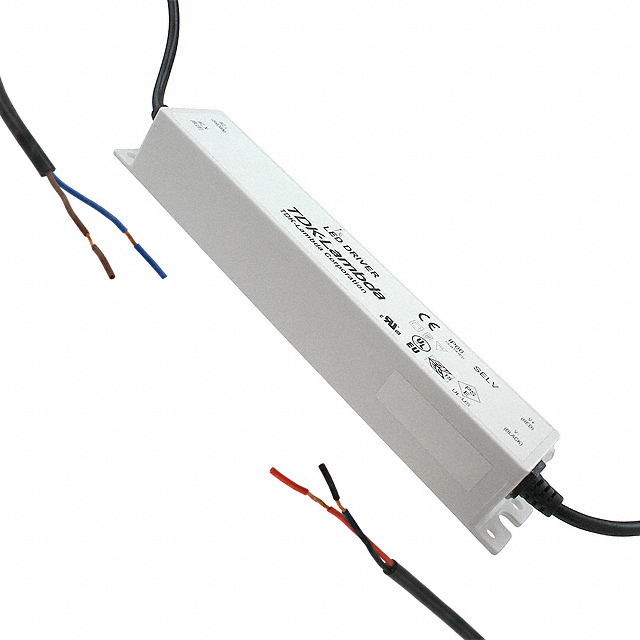

ALC100224R0

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ALC100224R0 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ALC100224R0
Manufacturer	TDK-Lambda Americas, Inc.
Description	LED DRIVER CC AC/DC 6-22V 4A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4885 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ALC100224R0	Manufacturer	TDK-Lambda Americas, Inc.
Description	LED DRIVER CC AC/DC 6-22V 4A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4885 pcs	Data sheet	AL60,80,100 Series Datasheet ALC100-22-4R0 Spec ALC60,80,100 Series Instr Manual ALC100-22-4R0 Outline
Category	Power Supplies - External/Internal (Off-Board)	Weight	1.1 lbs (499g)
Voltage - Output	6 ~ 22 V	Voltage - Isolation	3kV
Voltage - Input (Min)	90VAC	Voltage - Input (Max)	305VAC
Type	Constant Current	Topology	AC DC Converter
Termination Style	Wire Leads	Size / Dimension	9.49" L x 1.70" W x 1.36" H (241.0mm x 43.0mm x 34.5mm)
Series	ALC100	Ratings	IP66
Power (Watts)	88W	Other Names	285-2060 ALC100-22-4R0
Operating Temperature	-30°C ~ 70°C	Number of Outputs	1
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	OVP, SCP
Efficiency	86%	Dimming	-
Detailed Description	4A 6 ~ 22 V Constant Current LED Driver AC DC Converter Topology 1 Output	Current - Output (Max)	4A
Approvals	CE, CSA, EN, UL
