ZCYS51R5-M4PAT-01

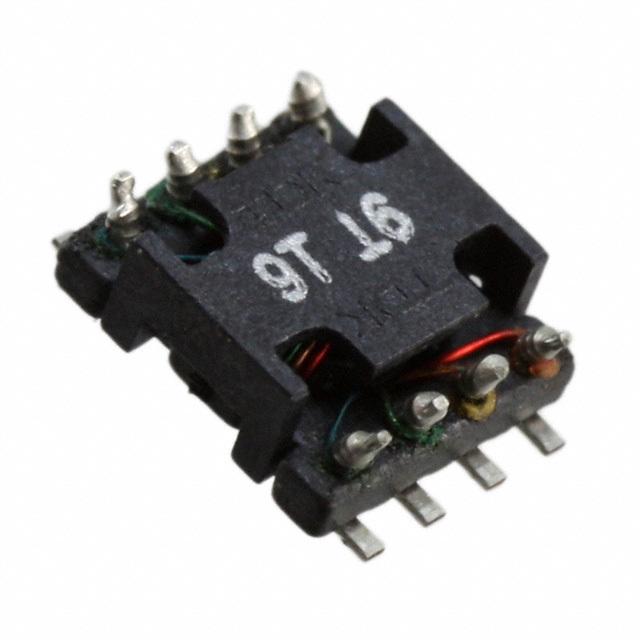

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZCYS51R5-M4PAT-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ZCYS51R5-M4PAT-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ZCYS51R5-M4PAT-01 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CMC 500MA 4LN 200 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ZCYS51R5-M4PAT-01 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CMC 500MA 4LN 200 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5018 pcs | Data sheet | ZCYS Series |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.224" L x 0.276" W (5.70mm x 7.00mm) |
| Series | ZCYS | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | - |
| Other Names | 445-6697-2 ZCYS51R5M4PAT01 |
Operating Temperature | -25°C ~ 85°C |
| Number of Lines | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 200 Ohms @ 100MHz | Height (Max) | 0.098" (2.50mm) |
| Filter Type | Signal Line | Features | - |
| Detailed Description | 4 Line Common Mode Choke Surface Mount 200 Ohms @ 100MHz 500mA DCR 200 mOhm | DC Resistance (DCR) (Max) | 200 mOhm |
| Current Rating (Max) | 500mA | Approvals | - |
