Home > Products > Filters > Ferrite Cores - Cables and Wiring > ZCAT2436-1330A-M

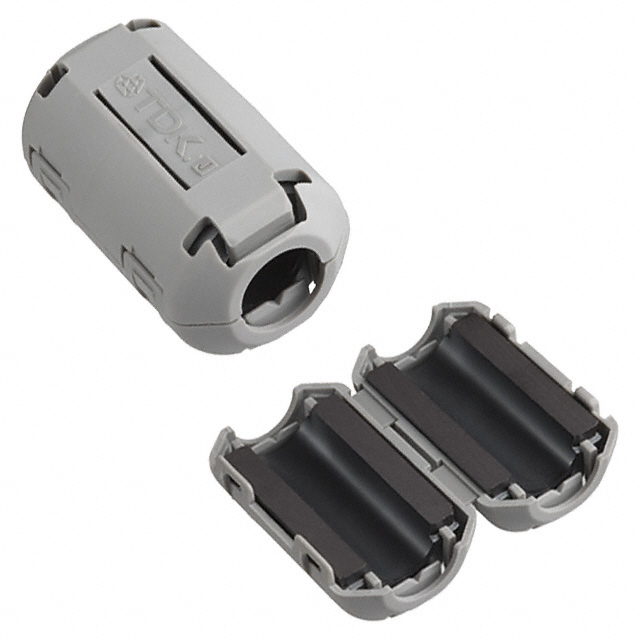

ZCAT2436-1330A-M

ZCAT2436-1330A-M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZCAT2436-1330A-M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZCAT2436-1330A-M
Manufacturer	TDK Corporation
Description	FERRITE CORE 80 OHM HINGED 13MM
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 4826 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ZCAT2436-1330A-M	Manufacturer	TDK Corporation
Description	FERRITE CORE 80 OHM HINGED 13MM	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4826 pcs	Data sheet	ZCAT Series
Category	Filters	Type	Round
Series	ZCAT	Ratings	-
Outer Dimension	0.866" Dia (22.00mm)	Mounting Type	Free Hanging
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	30
Length	1.417" (36.00mm)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Inner Dimension	0.512" Dia (13.00mm)	Impedance @ Frequency	80 Ohm @ 100MHz ~ 500MHz
Detailed Description	Hinged (Snap On) Free Hanging Ferrite Core 80 Ohm @ 100MHz ~ 500MHz ID 0.512" Dia (13.00mm) OD 0.866" Dia (22.00mm) Length 1.417" (36.00mm)	Design	Hinged (Snap On)
