Home > Products > Inductors, Coils, Chokes > Wireless Charging Coils > WT202030-16M8-G

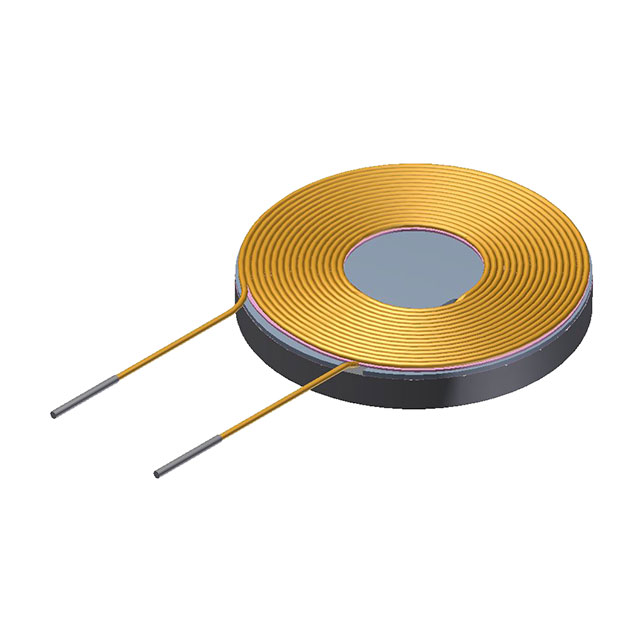

WT202030-16M8-G

WT202030-16M8-G

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT202030-16M8-G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	WT202030-16M8-G
Manufacturer	TDK Corporation
Description	TX 1 COIL, 1 LYR 6.2UH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 24698 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	560 pcs	1120 pcs
Reference Price (In US Dollars)	$2.714	$2.467	$1.677	$1.529	$1.431

Product parameter
Data sheet

Product parameter

Part Number	WT202030-16M8-G	Manufacturer	TDK Corporation
Description	TX 1 COIL, 1 LYR 6.2UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24698 pcs	Data sheet	WT202030-16M8-G Spec
Category	Inductors, Coils, Chokes	Type	1 Coil, 1 Layer
Tolerance	-	Series	WT
Q @ Freq	-	Other Names	445-175297
Operating Temperature	-	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	6.2µH
Function	Transmitter	Frequency - Self Resonant	-
Detailed Description	1 Coil, 1 Layer 6.2µH Wireless Charging Coil Transmitter 190 mOhm	DC Resistance (DCR)	190 mOhm
Current Rating	-	Current - Saturation	-
