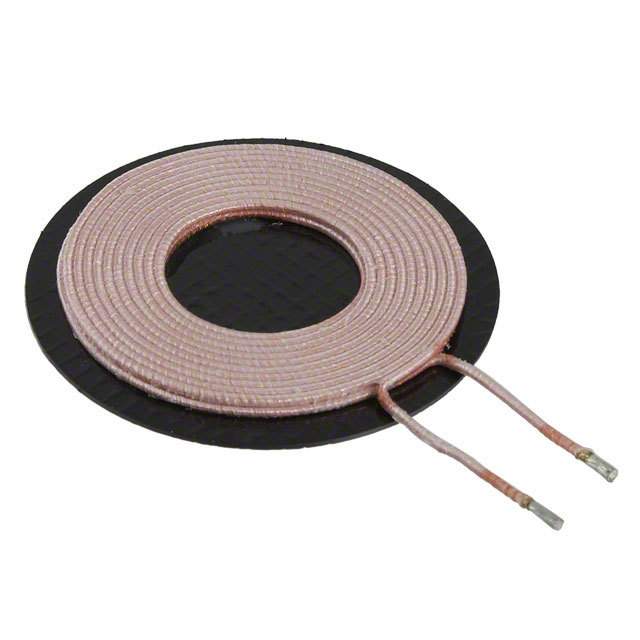

WT-505060-20K2-A10-G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT-505060-20K2-A10-G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WT-505060-20K2-A10-G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WT-505060-20K2-A10-G |
|---|---|
| Manufacturer | TDK Corporation |
| Description | TRANSMITTER 1 COIL 2 LAYER 24UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 72 pcs | 144 pcs | 504 pcs | |
|---|---|---|---|---|---|
| $4.654 | $3.855 | $3.722 | $3.536 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | WT-505060-20K2-A10-G | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | TRANSMITTER 1 COIL 2 LAYER 24UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9583 pcs | Data sheet | WT-505060-20K2-A10-G Spec |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 2 Layer |
| Tolerance | ±10% | Size / Dimension | 1.97" Dia x 0.13" H (50.0mm x 3.4mm) |
| Series | WT | Q @ Freq | 80 @ 100kHz |
| Other Names | 445-9310 WT50506020K2A10G |
Operating Temperature | -30°C ~ 70°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 24µH |
| Function | Transmitter | Frequency - Self Resonant | - |
| Detailed Description | 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100 mOhm Max | DC Resistance (DCR) | 100 mOhm Max |
| Current Rating | - | Current - Saturation | - |
