VLM13580T-3R3M-D1

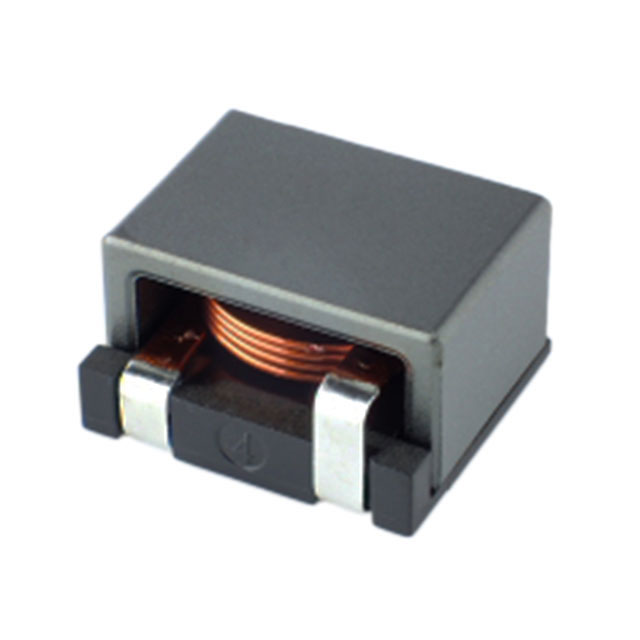

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VLM13580T-3R3M-D1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VLM13580T-3R3M-D1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VLM13580T-3R3M-D1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 3.3UH 8.4A 4.5 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | ||||
|---|---|---|---|---|---|
| $1.427 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | VLM13580T-3R3M-D1 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FIXED IND 3.3UH 8.4A 4.5 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23122 pcs | Data sheet | VLM Series, Automotive |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.480" W (13.50mm x 12.20mm) | Shielding | Shielded |
| Series | VLM | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 3.3µH | Height - Seated (Max) | 0.327" (8.30mm) |
| Frequency - Self Resonant | - | Detailed Description | 3.3µH Shielded Wirewound Inductor 8.4A 4.5 mOhm Max Nonstandard |
| DC Resistance (DCR) | 4.5 mOhm Max | Current Rating | 8.4A |
| Current - Saturation | 18A |
