Home > Products > Inductors, Coils, Chokes > Fixed Inductors > VLC5020T-2R2N

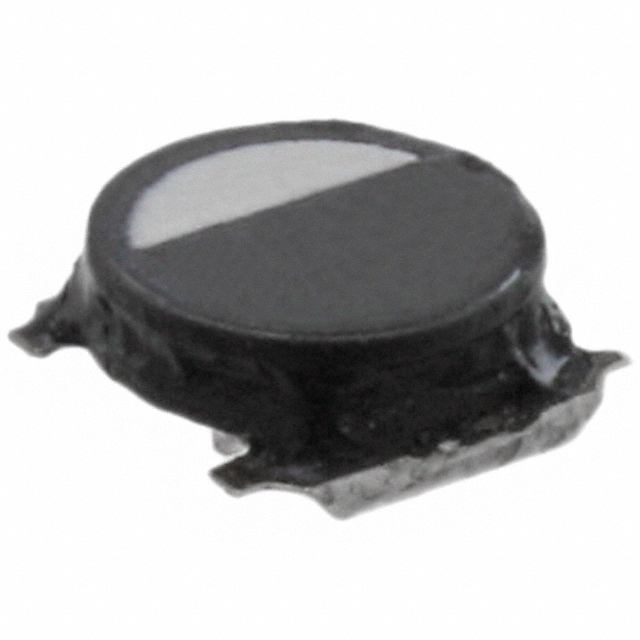

VLC5020T-2R2N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VLC5020T-2R2N with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VLC5020T-2R2N
Manufacturer	TDK Corporation
Description	FIXED IND 2.2UH 3A 45 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5083 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	VLC5020T-2R2N	Manufacturer	TDK Corporation
Description	FIXED IND 2.2UH 3A 45 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5083 pcs	Data sheet	VLC5020 Series
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±30%	Supplier Device Package	-
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)	Shielding	Shielded
Series	VLC	Ratings	-
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	445-6515-2 VLC5020T2R2N
Operating Temperature	-40°C ~ 105°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	2.2µH	Height - Seated (Max)	0.079" (2.00mm)
Frequency - Self Resonant	-	Detailed Description	2.2µH Shielded Wirewound Inductor 3A 45 mOhm Max Nonstandard
DC Resistance (DCR)	45 mOhm Max	Current Rating	3A
Current - Saturation	3A
