Home > Products > Inductors, Coils, Chokes > Fixed Inductors > VLB7050HT-R11M

VLB7050HT-R11M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VLB7050HT-R11M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VLB7050HT-R11M
Manufacturer	TDK Corporation
Description	FIXED IND 110NH 36A 0.27 MOHM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 43946 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$1.335	$1.225	$0.802

Product parameter
Data sheet

Product parameter

Part Number	VLB7050HT-R11M	Manufacturer	TDK Corporation
Description	FIXED IND 110NH 36A 0.27 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43946 pcs	Data sheet	VLB7050 Series
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.264" L x 0.244" W (6.70mm x 6.20mm)	Shielding	Unshielded
Series	VLB	Ratings	-
Q @ Freq	-	Packaging	Cut Tape (CT)
Package / Case	Nonstandard	Other Names	445-17114-1
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	1MHz	Inductance	110nH
Height - Seated (Max)	0.197" (5.00mm)	Frequency - Self Resonant	-
Detailed Description	110nH Unshielded Wirewound Inductor 36A 0.27 mOhm Max Nonstandard	DC Resistance (DCR)	0.27 mOhm Max
Current Rating	36A	Current - Saturation	47A

Related products
Related news

Related products

VLB10050HT-R20M Image

Part#:~~VLB10050HT-R20M~~
Manufacturers:~~TDK Corporation~~
Description:~~FIXED IND 200NH 31A 0.35 MOHM~~
In Stock:~~40997~~

~~$0.872/pcs~~RFQ

VLB12065HT-R20M Image

Part#:~~VLB12065HT-R20M~~
Manufacturers:~~TDK Corporation~~
Description:~~FIXED IND 200NH 27A 0.466 MOHM~~
In Stock:~~40024~~

~~$0.77/pcs~~RFQ

VLB12065HT-R36M Image

Part#:~~VLB12065HT-R36M~~
Manufacturers:~~TDK Corporation~~
Description:~~FIXED IND 360NH 27A 0.44 MOHM~~
In Stock:~~33061~~

~~$1.007/pcs~~RFQ

VLBS1007083T-R12L Image

Part#:~~VLBS1007083T-R12L~~
Manufacturers:~~TDK Corporation~~
Description:~~INDUCTORS FOR POWER CIRCUITS, WO~~
In Stock:~~53739~~

~~$0.644/pcs~~RFQ

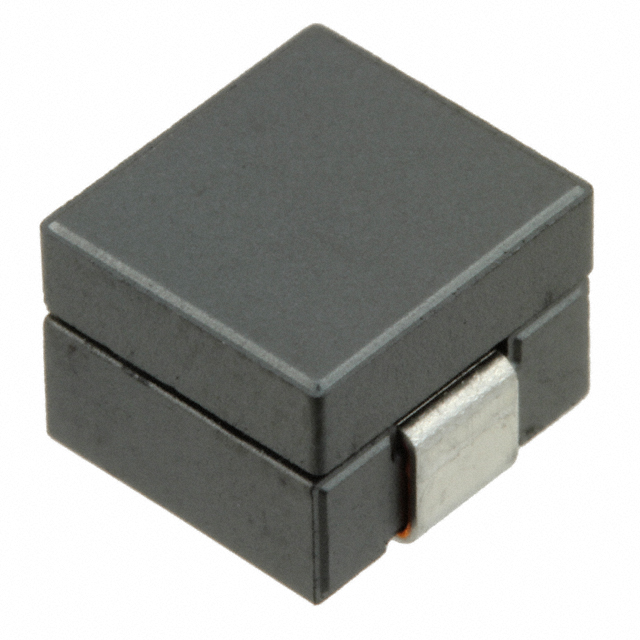

VLB7050HT-R09M Image
