UF1815SG-800Y3R0-01

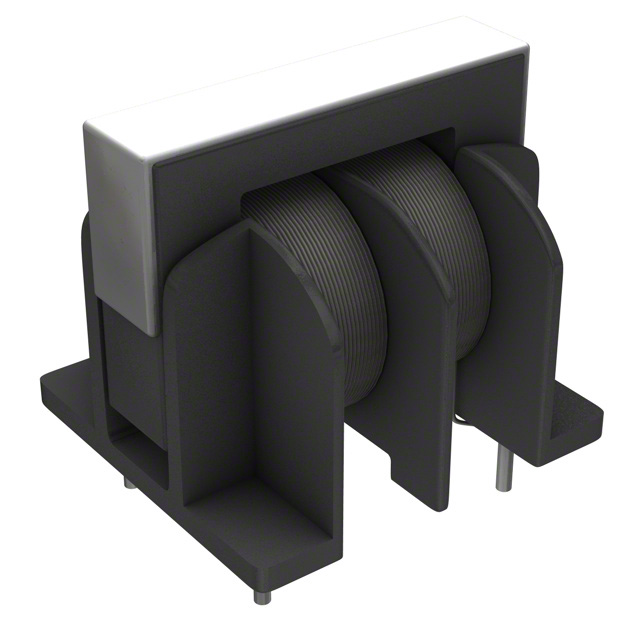

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UF1815SG-800Y3R0-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy UF1815SG-800Y3R0-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | UF1815SG-800Y3R0-01 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | COMMON MODE CHOKE 3A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | UF1815SG-800Y3R0-01 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 3A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4449 pcs | Data sheet | UF Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.709" L x 0.669" W (18.00mm x 17.00mm) |
| Series | UF | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | UF1815SG800Y3R001 | Operating Temperature | -20°C ~ 120°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.610" (15.50mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 3A DCR 50 mOhm |
| DC Resistance (DCR) (Max) | 50 mOhm | Current Rating (Max) | 3A |
| Approvals | - |
