Home > Products > Inductors, Coils, Chokes > Fixed Inductors > TSL0709RA-6R8M2R3-PF

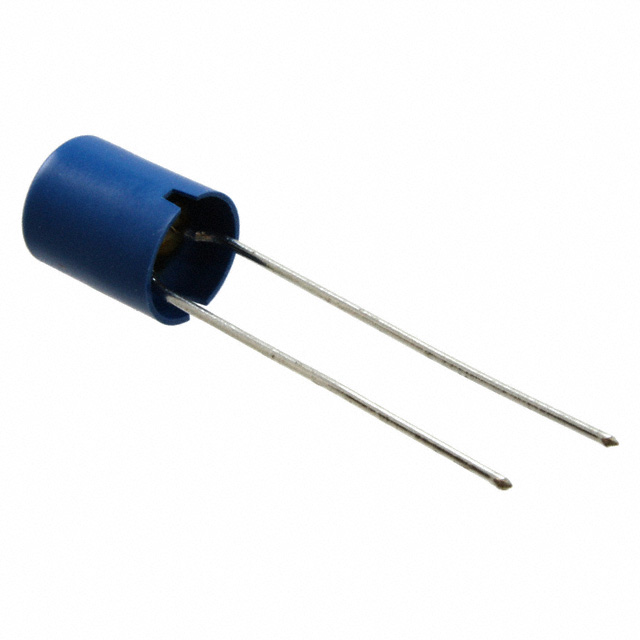

TSL0709RA-6R8M2R3-PF

TSL0709RA-6R8M2R3-PF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSL0709RA-6R8M2R3-PF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TSL0709RA-6R8M2R3-PF
Manufacturer	TDK Corporation
Description	FIXED IND 6.8UH 2.3A 28 MOHM TH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4389 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	TSL0709RA-6R8M2R3-PF	Manufacturer	TDK Corporation
Description	FIXED IND 6.8UH 2.3A 28 MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4389 pcs	Data sheet	TSL Series Datasheet
Category	Inductors, Coils, Chokes	Type	-
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.303" Dia (7.70mm)	Shielding	Unshielded
Series	TSL	Ratings	-
Q @ Freq	10 @ 7.96MHz	Packaging	Tape & Box (TB)
Package / Case	Radial	Other Names	445-6511-3 TSL0709RA6R8M2R3PF
Operating Temperature	-20°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	1kHz
Inductance	6.8µH	Height - Seated (Max)	0.378" (9.60mm)
Frequency - Self Resonant	24MHz	Detailed Description	6.8µH Unshielded Inductor 2.3A 28 mOhm Max Radial
DC Resistance (DCR)	28 mOhm Max	Current Rating	2.3A
Current - Saturation	2.5A
