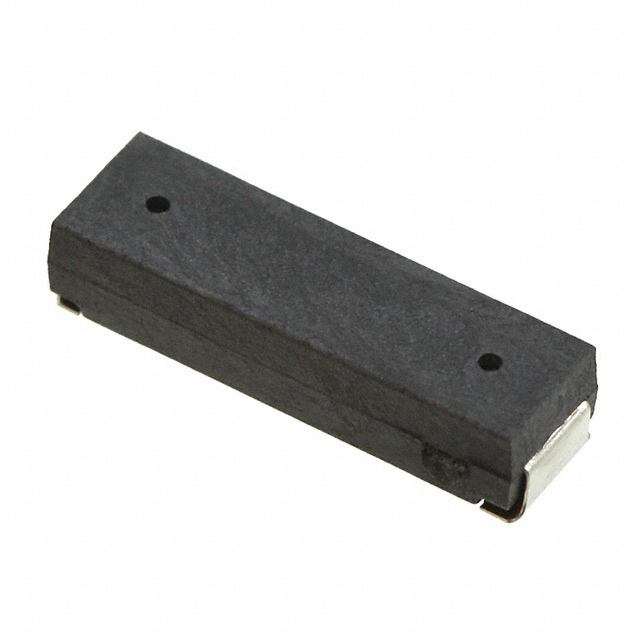

TPL1183525-262J-261N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPL1183525-262J-261N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPL1183525-262J-261N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPL1183525-262J-261N |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 2.61MH 26 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.623 | $0.578 | $0.418 | $0.32 | $0.285 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TPL1183525-262J-261N | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FIXED IND 2.61MH 26 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71655 pcs | Data sheet | TPL Series TPL1183427,TPL1183525 |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±5% | Supplier Device Package | - |
| Size / Dimension | 0.465" L x 0.138" W (11.80mm x 3.50mm) | Shielding | Unshielded |
| Series | TPL | Ratings | AEC-Q200 |
| Q @ Freq | 50 @ 125kHz | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | 445-175362-6 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 125kHz | Inductance | 2.61mH |
| Height - Seated (Max) | 0.106" (2.70mm) | Frequency - Self Resonant | 650kHz |
| Detailed Description | 2.61mH Unshielded Inductor 26 Ohm Nonstandard | DC Resistance (DCR) | 26 Ohm |
| Current - Saturation | - |
