TFSD10055950-5102A2

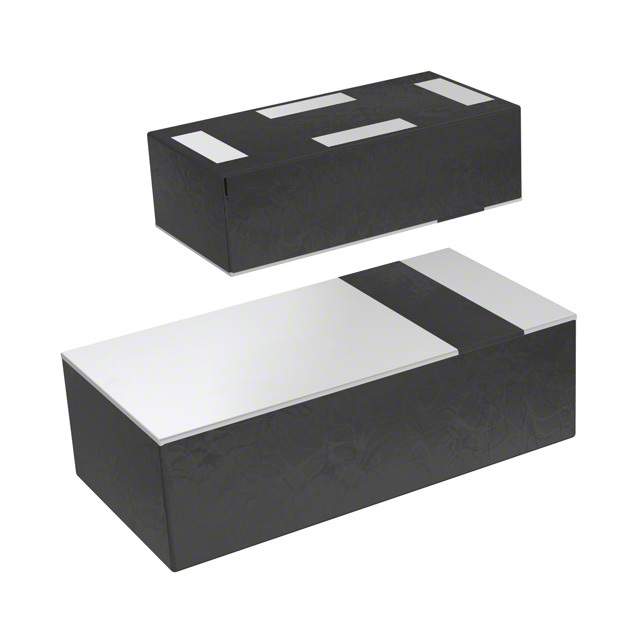

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TFSD10055950-5102A2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TFSD10055950-5102A2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TFSD10055950-5102A2 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | RF DIPLEXER 2.45GHZ/5.45GHZ 0402 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TFSD10055950-5102A2 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | RF DIPLEXER 2.45GHZ/5.45GHZ 0402 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5954 pcs | Data sheet | TFSD10055950-5102A2 |
| Category | RF/IF and RFID | Series | - |
| Return Loss (Low Band / High Band) | 21dB / 23dB | Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) | Other Names | 445-15669-2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Low Band Attenuation (min / max dB) | 20.00dB / 27.00dB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| High Band Attenuation (min / max dB) | 15.00dB / 31.00dB | Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz |
| Detailed Description | RF Diplexor 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz 0402 (1005 Metric) |
