SESUB-PAN-D14580

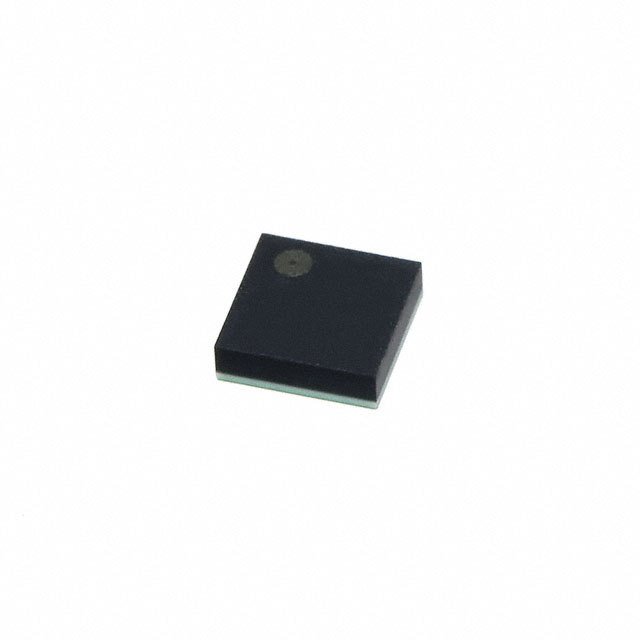

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SESUB-PAN-D14580 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SESUB-PAN-D14580 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SESUB-PAN-D14580 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | IC RF TXRX+MCU BLUETOOTH 36-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $2.661 | $2.44 | $2.218 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.996 | $1.83 | $1.663 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SESUB-PAN-D14580 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | IC RF TXRX+MCU BLUETOOTH 36-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22654 pcs | Data sheet | SESUB-PAN-D14580 Spec SheetSESUB-PAN-D14580 Pin OutSESUB-PAN-D14580 CatalogSESUB-PAN-D14580 Product Brief |
| Category | RF/IF and RFID | Voltage - Supply | 2.35 V ~ 3.3 V |
| Type | TxRx + MCU | Series | - |
| Serial Interfaces | I²C, SPI, UART | Sensitivity | -94dBm |
| RF Family/Standard | Bluetooth | Protocol | Bluetooth v4.1 |
| Power - Output | 0dBm | Packaging | Original-Reel® |
| Package / Case | 36-SMD Module | Other Names | 445-174162-6 |
| Operating Temperature | -20°C ~ 70°C | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Modulation | - | Memory Size | 32kB OTP, 84kB ROM, 50kB SRAM |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| GPIO | 12 | Frequency | 2.4GHz |
| Detailed Description | IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 36-SMD Module | Data Rate (Max) | - |
| Current - Transmitting | 5mA | Current - Receiving | 5.4mA |
