SDR08540M3-01

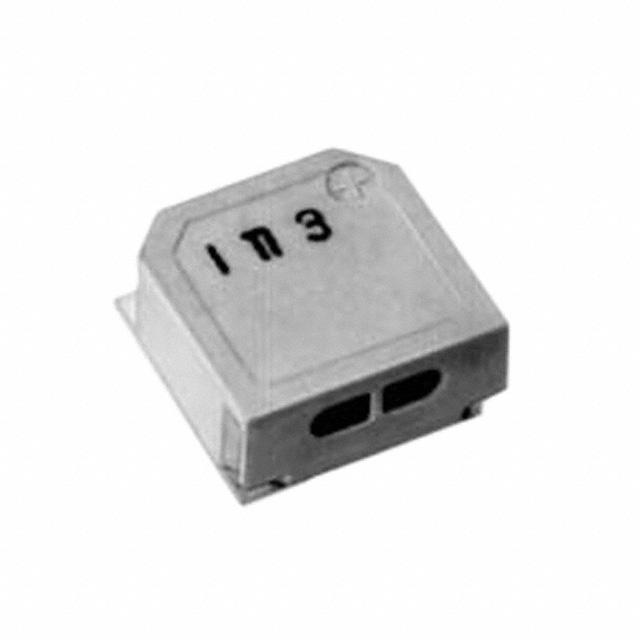

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDR08540M3-01 with confidence from Components-World.HK, 1 Year Warranty
Dowload SDR08540M3-01 Details in PDFSee Product Specifications for product details.
Buy SDR08540M3-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDR08540M3-01 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | AUDIO MAGNETIC XDCR 0-5V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.718 | $1.358 | $1.238 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.158 | $1.078 | $0.998 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDR08540M3-01 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | AUDIO MAGNETIC XDCR 0-5V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39516 pcs | Data sheet | SDR Series |
| Category | Audio Products | Voltage Range | 0 ~ 5V |
| Voltage - Rated | 3V | Termination | Solder Pads |
| Technology | Magnetic | Sound Pressure Level (SPL) | 88dB @ 3V, 10cm |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) | Series | SDR |
| Ratings | - | Port Location | Side |
| Packaging | Cut Tape (CT) | Other Names | 445-4832-1 |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Single Tone |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Zero-Peak Signal | Height - Seated (Max) | 0.165" (4.20mm) |
| Frequency | 2.67kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Magnetic 3V 85mA 2.67kHz 88dB @ 3V, 10cm Surface Mount Solder Pads |
| Current - Supply | 85mA | Approvals | - |
