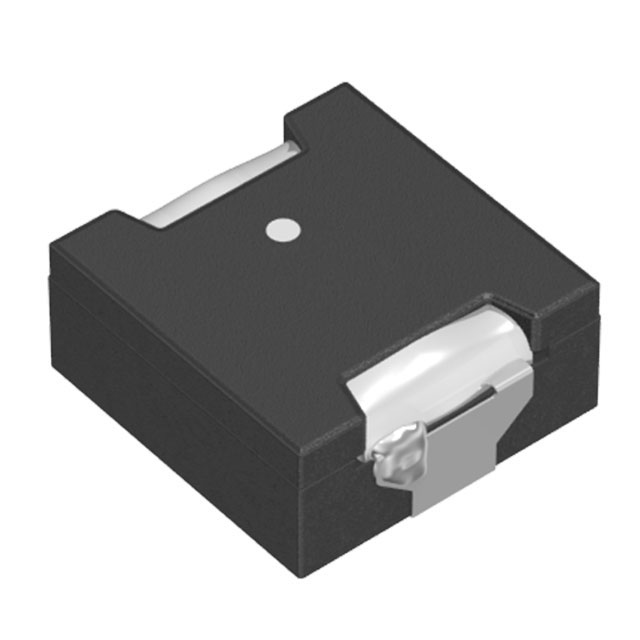

RLF12560T-1R9N120
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RLF12560T-1R9N120 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RLF12560T-1R9N120 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RLF12560T-1R9N120 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 1.9UH 12.7A 3.6 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.464 | $0.423 | $0.409 | $0.395 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RLF12560T-1R9N120 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FIXED IND 1.9UH 12.7A 3.6 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80599 pcs | Data sheet | RLF12560 Series, Commercial |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.504" L x 0.492" W (12.80mm x 12.50mm) | Shielding | Shielded |
| Series | RLF | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 445-2955-2 RLF12560T-1R9N120-ND RLF12560T1R9N120 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1.9µH |
| Height - Seated (Max) | 0.185" (4.70mm) | Frequency - Self Resonant | - |
| Detailed Description | 1.9µH Shielded Wirewound Inductor 12.7A 3.6 mOhm Nonstandard | DC Resistance (DCR) | 3.6 mOhm |
| Current Rating | 12.7A | Current - Saturation | 15.6A |
