PCA15EFD-U10S002

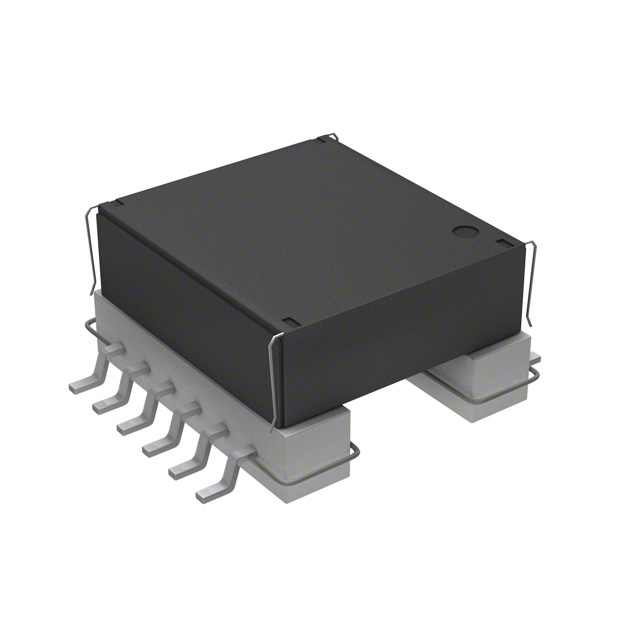

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCA15EFD-U10S002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PCA15EFD-U10S002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PCA15EFD-U10S002 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | INDUCTOR/XFRMR 3.8UH MULTIWIND |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PCA15EFD-U10S002 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | INDUCTOR/XFRMR 3.8UH MULTIWIND | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4297 pcs | Data sheet | PCA15EFD Series |
| Category | Transformers | Voltage - Primary | - |
| Voltage - Isolation | 500Vrms | Voltage - Auxiliary | - |
| Type | Configurable (For DC/DC) | Size / Dimension | 0.713" L x 0.630" W (18.10mm x 16.00mm) |
| Series | PCA15EFD | Packaging | Tray |
| Other Names | 445-1681 | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Intended Chipset | - |
| Inductance @ Frequency | Parallel 3.8µH @ 10kHz, Series 137µH @ 10kHz | Height - Seated (Max) | 0.354" (9.00mm) |
| Frequency | - | Footprint | 0.713" L x 0.886" W (18.10mm x 22.50mm) |
| Chipset Manufacturer | - | Applications | Capacitor Charger |
