Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > PC40EER40-Z

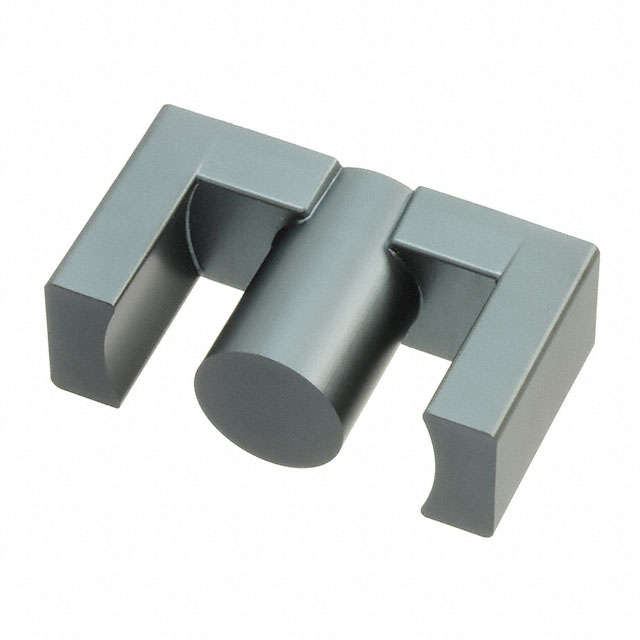

PC40EER40-Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC40EER40-Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PC40EER40-Z
Manufacturer	TDK Corporation
Description	FERRITE CORE FOR SWITCHING POWER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	256 pcs	512 pcs	1024 pcs
~~In Stock~~ 174500 pcs
Reference Price (In US Dollars)	2 pcs	10 pcs	64 pcs	128 pcs
	$0.307	$0.277	$0.195	$0.174
	$0.164	$0.154	$0.133

Product parameter
Data sheet

Product parameter

Part Number	PC40EER40-Z	Manufacturer	TDK Corporation
Description	FERRITE CORE FOR SWITCHING POWER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	174500 pcs	Data sheet	PC40EER40-Z Spec
Category	Magnetics - Transformer, Inductor Components	Width	13.30mm
Tolerance	±25%	Supplier Device Package	EER 40
Series	-	Other Names	445-175087
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	PC40
Manufacturer Standard Lead Time	12 Weeks	Length	40.00mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height	22.40mm
Gap	Gapped	Finish	Uncoated
Effective Magnetic Volume (Ve) mm³	14600	Effective Length (le) mm	98
Effective Area (Ae) mm²	149	Diameter	-
Core Type	EER	Core Factor (ΣI/A) mm1	0.658
