NL322522T-1R0J

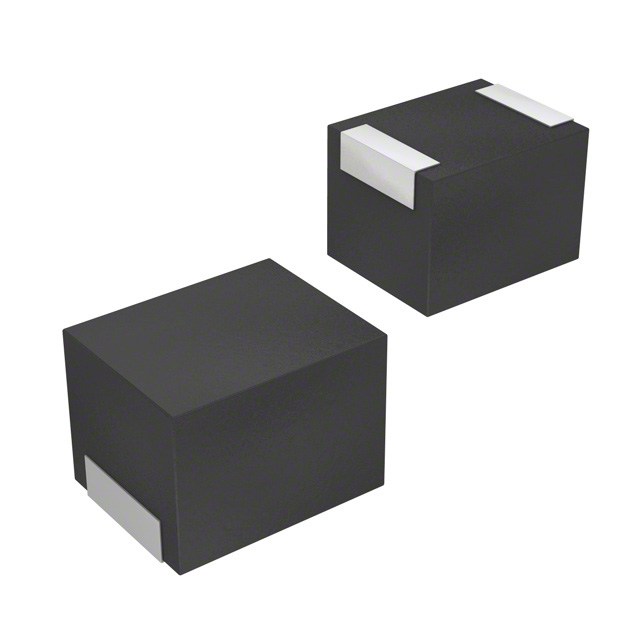

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NL322522T-1R0J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NL322522T-1R0J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NL322522T-1R0J |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 1UH 400MA 700 MOHM SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NL322522T-1R0J | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FIXED IND 1UH 400MA 700 MOHM SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5154 pcs | Data sheet | NL3225 Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±5% | Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Shielding | Unshielded |
| Series | NL | Ratings | - |
| Q @ Freq | 30 @ 7.96MHz | Packaging | Cut Tape (CT) |
| Package / Case | 1210 (3225 Metric) | Other Names | 445-1109-1 NL322522T1R0J |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Inductance Frequency - Test | 7.96MHz |
| Inductance | 1µH | Height - Seated (Max) | 0.094" (2.40mm) |
| Frequency - Self Resonant | 120MHz | Detailed Description | 1µH Unshielded Inductor 400mA 700 mOhm Max 1210 (3225 Metric) |
| DC Resistance (DCR) | 700 mOhm Max | Current Rating | 400mA |
| Current - Saturation | - |
