MLZ2012A2R2WTD25

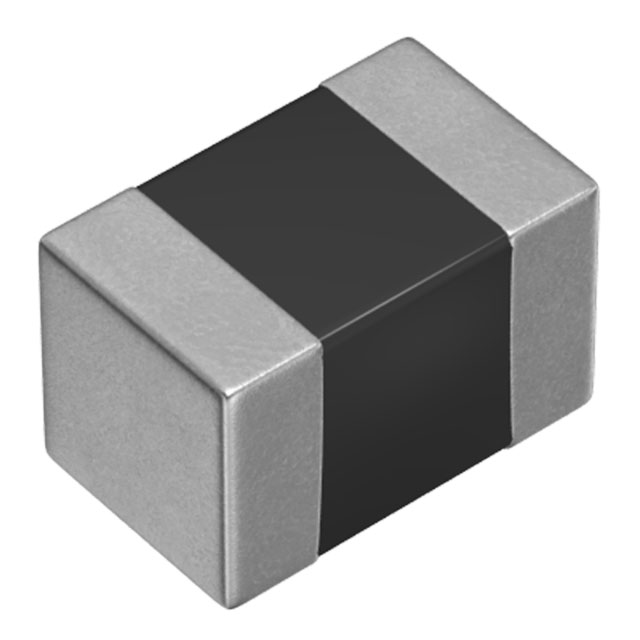

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MLZ2012A2R2WTD25 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MLZ2012A2R2WTD25 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MLZ2012A2R2WTD25 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 2.2UH 650MA 195 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | 28000 pcs | 100000 pcs |
|---|---|---|---|---|---|
| $0.021 | $0.02 | $0.019 | $0.018 | $0.017 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MLZ2012A2R2WTD25 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FIXED IND 2.2UH 650MA 195 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1393840 pcs | Data sheet | MLZ2012 Series, Automotive |
| Category | Inductors, Coils, Chokes | Type | Multilayer |
| Tolerance | ±20% | Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Shielding | Shielded |
| Series | MLZ | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) | Other Names | 445-16374-2 MLZ2012A2R2WTD25-ND |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10MHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.041" (1.05mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.2µH Shielded Multilayer Inductor 650mA 195 mOhm Max 0805 (2012 Metric) | DC Resistance (DCR) | 195 mOhm Max |
| Current Rating | 650mA | Current - Saturation | 210mA |
