MLP2520H2R2MT0S1

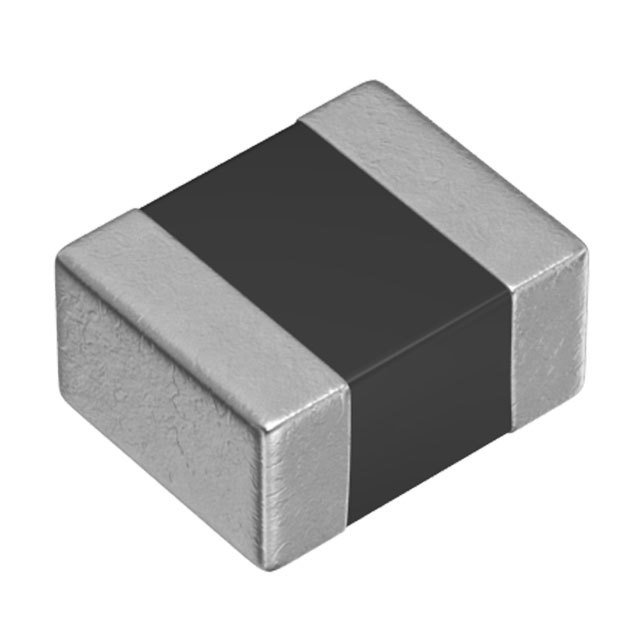

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MLP2520H2R2MT0S1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MLP2520H2R2MT0S1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MLP2520H2R2MT0S1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 2.2UH 1.3A 90 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.051 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MLP2520H2R2MT0S1 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FIXED IND 2.2UH 1.3A 90 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 419925 pcs | Data sheet | MLP2520 Series, Commercial DatasheetMLP Series Brief |
| Category | Inductors, Coils, Chokes | Type | Multilayer |
| Tolerance | ±20% | Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Shielding | Shielded |
| Series | MLP | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | 1008 (2520 Metric) | Other Names | 445-9505-2 MLP2520H2R2M |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 2MHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.047" (1.20mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.2µH Shielded Multilayer Inductor 1.3A 117 mOhm Max 1008 (2520 Metric) | DC Resistance (DCR) | 117 mOhm Max |
| Current Rating | 1.3A | Current - Saturation | - |
