Home > Products > Inductors, Coils, Chokes > Fixed Inductors > MHQ0402P5N1HT000

MHQ0402P5N1HT000

MHQ0402P5N1HT000

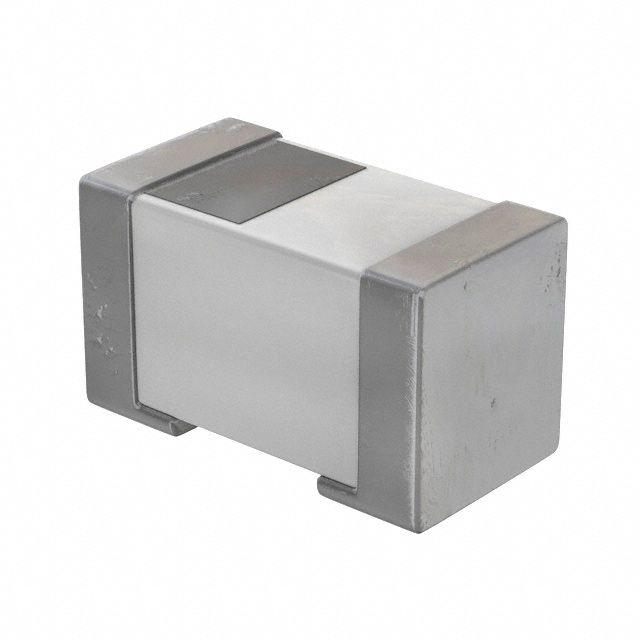

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MHQ0402P5N1HT000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MHQ0402P5N1HT000
Manufacturer	TDK Corporation
Description	FIXED IND 5.1NH 200MA 1 OHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5662 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MHQ0402P5N1HT000	Manufacturer	TDK Corporation
Description	FIXED IND 5.1NH 200MA 1 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5662 pcs	Data sheet	MHQ0402P Series, Commercial
Category	Inductors, Coils, Chokes	Type	Multilayer
Tolerance	±3%	Supplier Device Package	01005 (0402 Metric)
Size / Dimension	0.017" L x 0.009" W (0.44mm x 0.24mm)	Shielding	Unshielded
Series	MHQ-P	Ratings	-
Q @ Freq	10 @ 500MHz	Packaging	Tape & Reel (TR)
Package / Case	01005 (0402 Metric)	Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ceramic, Non-Magnetic	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	500MHz	Inductance	5.1nH
Height - Seated (Max)	0.010" (0.26mm)	Frequency - Self Resonant	4GHz
Detailed Description	5.1nH Unshielded Multilayer Inductor 200mA 1 Ohm Max 01005 (0402 Metric)	DC Resistance (DCR)	1 Ohm Max
Current Rating	200mA	Current - Saturation	-
