Home > Products > Filters > EMI/RFI Filters (LC, RC Networks) > MEM2012SC220

MEM2012SC220

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEM2012SC220 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MEM2012SC220
Manufacturer	TDK Corporation
Description	FILTER LC(T) 22PF SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 313620 pcs
Reference Price (In US Dollars)	4000 pcs	8000 pcs	12000 pcs	28000 pcs
Reference Price (In US Dollars)	$0.073	$0.069	$0.064	$0.06

Product parameter
Data sheet

Product parameter

Part Number	MEM2012SC220	Manufacturer	TDK Corporation
Description	FILTER LC(T) 22PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	313620 pcs	Data sheet	MEM2012SC Series
Category	Filters	Voltage - Rated	12V
Values	C = 22pF	Type	Low Pass
Technology	LC (T-Type)	Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Series	MEM	Resistance - Channel (Ohms)	0.15
Packaging	Tape & Reel (TR)	Package / Case	0805 (2012 Metric), 6 PC Pad
Other Names	445-9350-2 MEM2012SC220T001 MEM2012SC220T001-ND	Operating Temperature	-40°C ~ 85°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height	0.037" (0.95mm)
Filter Order	3rd	ESD Protection	No
Detailed Description	LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 22pF 1A 0805 (2012 Metric), 6 PC Pad	Current	1A
Center / Cutoff Frequency	-	Attenuation Value	-
Applications	Data Lines for Mobile Devices

Related products
Related news

Related products

MEM2012S35R0T Image

Part#:~~MEM2012S35R0T~~
Manufacturers:~~TDK Corporation~~
Description:~~FILTER LC(T) 35MHZ SMD~~
In Stock:~~346448~~

~~$0.062/pcs~~RFQ

MEM2012S35R0T001 Image

Part#:~~MEM2012S35R0T001~~
Manufacturers:~~TDK Corporation~~
Description:~~FILTER LC(T) 35MHZ SMD~~
In Stock:~~436896~~

~~$0.05/pcs~~RFQ

MEM2012SC100T001 Image

Part#:~~MEM2012SC100T001~~
Manufacturers:~~TDK Corporation~~
Description:~~FILTER LC(T) 10PF SMD~~
In Stock:~~311656~~

~~$0.075/pcs~~RFQ

MEM2012S50R0T001 Image

Part#:~~MEM2012S50R0T001~~
Manufacturers:~~TDK Corporation~~
Description:~~FILTER LC(T) 50MHZ SMD~~
In Stock:~~338326~~

~~$0.071/pcs~~RFQ

MEM2012T101R Image

Part#:~~MEM2012T101R~~
Manufacturers:~~TDK Corporation~~
Description:~~FILTER LC(T) 100MHZ SMD~~
In Stock:~~170397~~

~~$0.132/pcs~~RFQ

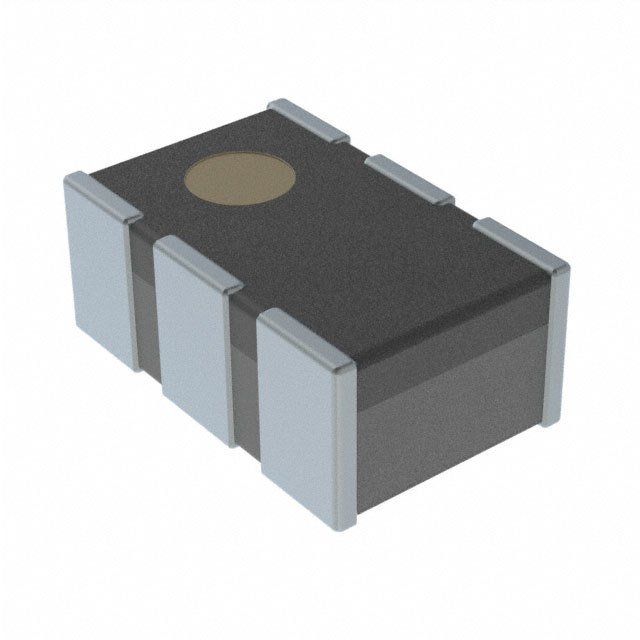

MEM2012SC470 Image
