LTF3020T-100M-D

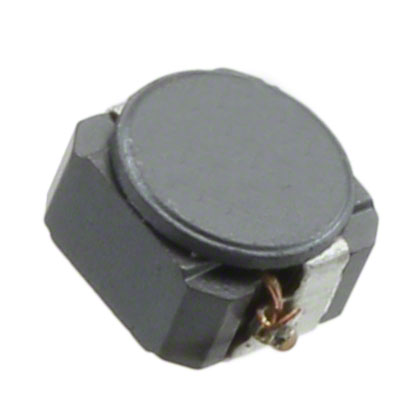

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTF3020T-100M-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTF3020T-100M-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTF3020T-100M-D |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 10UH 820MA 260 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.232 | $0.224 | $0.217 | $0.21 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTF3020T-100M-D | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FIXED IND 10UH 820MA 260 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90060 pcs | Data sheet | LTF3020-D Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.118" W (4.50mm x 3.00mm) | Shielding | Shielded |
| Series | LTF3020-D | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 445-16188-2 LTF3020T-100M-D-ND |
| Operating Temperature | -40°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 1MHz |
| Inductance | 10µH | Height - Seated (Max) | 0.079" (2.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 10µH Shielded Wirewound Inductor 820mA 260 mOhm Max Nonstandard |
| DC Resistance (DCR) | 260 mOhm Max | Current Rating | 820mA |
| Current - Saturation | 590mA |
