HHM1946A1

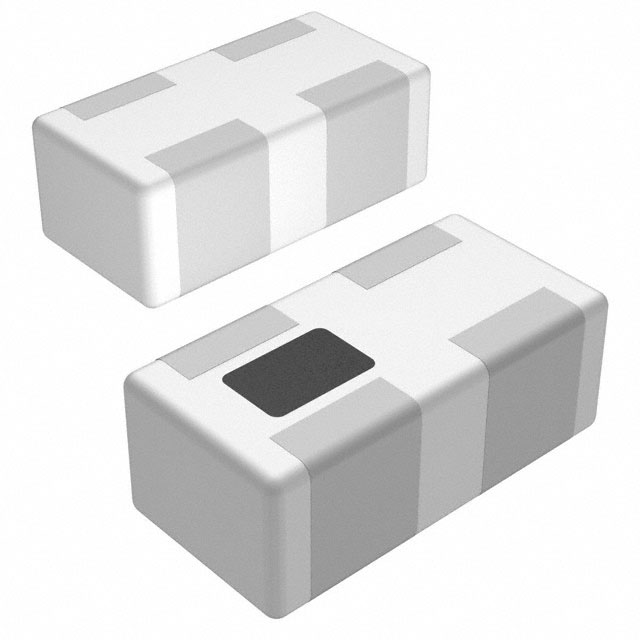

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HHM1946A1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HHM1946A1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HHM1946A1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | BALUN 2.3GHZ-2.7GHZ 50/100 0402 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.619 | $0.606 | $0.406 | $0.361 | $0.331 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.297 | $0.291 | $0.21 | $0.186 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HHM1946A1 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | BALUN 2.3GHZ-2.7GHZ 50/100 0402 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 117318 pcs | Data sheet | HHM1946A1 |
| Category | RF/IF and RFID | Series | - |
| Return Loss (Min) | -23dB | Phase Difference | 190° |
| Packaging | Cut Tape (CT) | Package / Case | 0402 (1005 Metric), 4 PC Pad |
| Other Names | 445-173092-1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss (Max) | 0.5dB |
| Impedance - Unbalanced/Balanced | 50 / 100 Ohm | Frequency Range | 2.3GHz ~ 2.7GHz |
| Detailed Description | RF Balun 2.3GHz ~ 2.7GHz 50 / 100 Ohm 0402 (1005 Metric), 4 PC Pad |
