Home > Products > Filters > RF Filters > DEA212495BT-7055A2

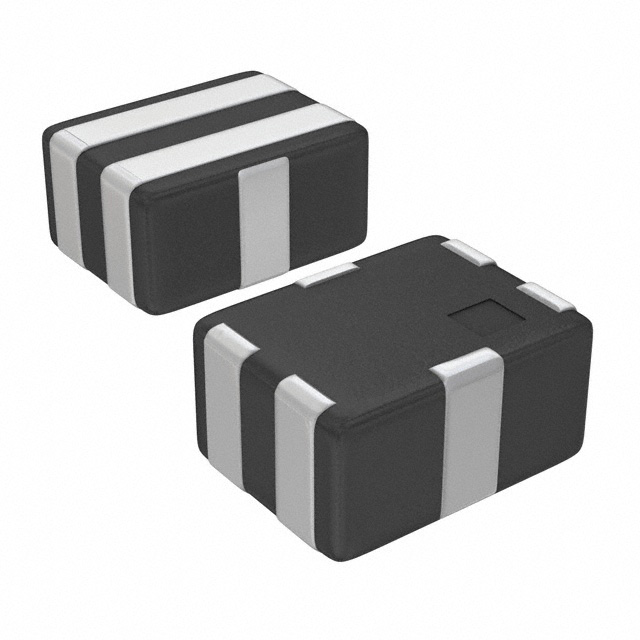

DEA212495BT-7055A2

DEA212495BT-7055A2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DEA212495BT-7055A2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DEA212495BT-7055A2
Manufacturer	TDK Corporation
Description	FILTER BANDPASS 2.5GHZ WIMAX SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 135994 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$0.159

Product parameter
Data sheet

Product parameter

Part Number	DEA212495BT-7055A2	Manufacturer	TDK Corporation
Description	FILTER BANDPASS 2.5GHZ WIMAX SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	135994 pcs	Data sheet	RF Components For Wireless Appl Guide
Category	Filters	Size / Dimension	0.079" L x 0.059" W (2.00mm x 1.50mm)
Series	DEA	Ripple	-
Packaging	Tape & Reel (TR)	Package / Case	0805 (2012 Metric), 6 PC Pad
Other Names	445-4117-2 DEA212495BT-7055A2-ND Q4190748	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	2.8dB
Height (Max)	0.039" (1.00mm)	Frequency	2.495GHz Center
Filter Type	Band Pass	Bandwidth	390MHz
