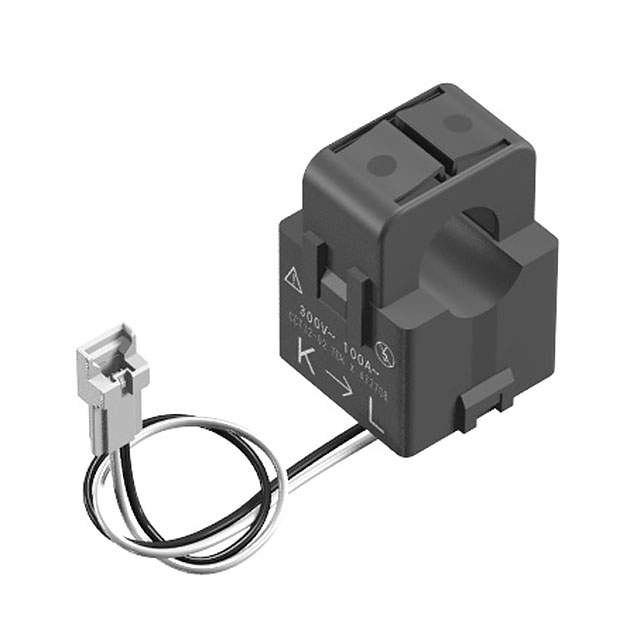

CCT323047-100-16-02
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CCT323047-100-16-02 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CCT323047-100-16-02 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CCT323047-100-16-02 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CURR SENSE XFMR 100A CHAS MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $11.658 | $11.128 | $10.068 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $9.274 | $8.214 | $7.949 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CCT323047-100-16-02 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 100A CHAS MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4272 pcs | Data sheet | Clamp Type AC Current Sensors Prod InfoCCT Series Datasheet |
| Category | Transformers | Weight | 0.155 lb (70.31g) |
| Type | Non-Invasive (Split Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | Wire Leads with Connector | Size / Dimension | 1.378" L x 1.280" W (35.00mm x 32.50mm) |
| Series | CCT | Ratings | - |
| Packaging | Bulk | Other Names | 445-172913 |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.870" (47.50mm) | Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - | Detailed Description | 100A Current Sense Transformer 50/60Hz 285 Ohm Chassis Mount |
| DC Resistance (DCR) | 285 Ohm | Current Ratio | 3000:1 |
| Current Rating | 100A |
