Home > Products > Capacitors > Ceramic Capacitors > CC45SL3DD561JYNN

CC45SL3DD561JYNN

CC45SL3DD561JYNN

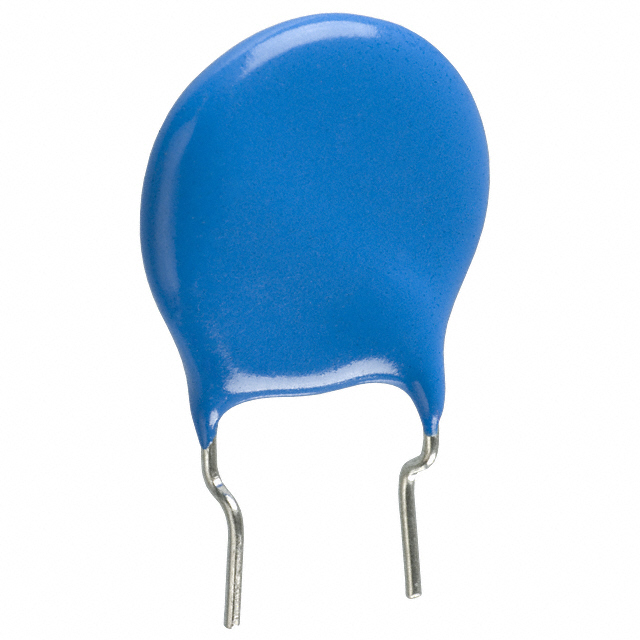

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CC45SL3DD561JYNN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CC45SL3DD561JYNN
Manufacturer	TDK Corporation
Description	CAP CER 560PF 2KV SL RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4096 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	CC45SL3DD561JYNN	Manufacturer	TDK Corporation
Description	CAP CER 560PF 2KV SL RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4096 pcs	Data sheet	CC45 Series
Category	Capacitors	Voltage - Rated	2000V (2kV)
Tolerance	±5%	Thickness (Max)	-
Temperature Coefficient	SL	Size / Dimension	0.571" Dia (14.50mm)
Series	CC45	Ratings	-
Packaging	Bulk	Package / Case	Radial, Disc
Other Names	445-2819	Operating Temperature	-25°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Style	Formed Leads - Kinked	Lead Spacing	0.295" (7.50mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.728" (18.50mm)
Features	High Voltage, Low Dissipation Factor	Failure Rate	-
Detailed Description	560pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc	Capacitance	560pF
Applications	General Purpose
