ACT45R-101-2P-TL001

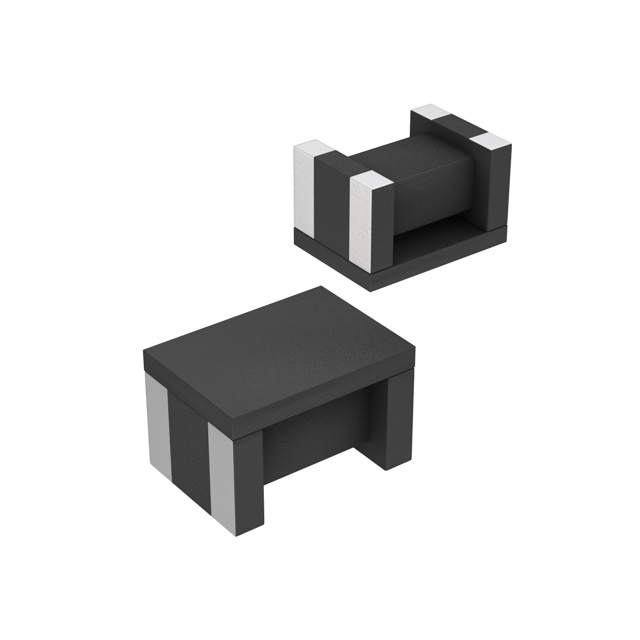

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACT45R-101-2P-TL001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACT45R-101-2P-TL001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACT45R-101-2P-TL001 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CMC 100UH 200MA 2LN SMD AEC-Q200 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.397 | $0.383 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACT45R-101-2P-TL001 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CMC 100UH 200MA 2LN SMD AEC-Q200 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78622 pcs | Data sheet | ACT45R Series BriefACT45R Series, Auto Datasheet |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Series | ACT | Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 445-8933-2 ACT45R1012PTL001 |
Operating Temperature | -40°C ~ 150°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 100µH @ 100kHz |
| Impedance @ Frequency | 5.5 kOhms @ 10MHz | Height (Max) | 0.118" (3.00mm) |
| Filter Type | Signal Line | Features | - |
| Detailed Description | 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 5.5 kOhms @ 10MHz 200mA DCR 1.5 Ohm | DC Resistance (DCR) (Max) | 1.5 Ohm |
| Current Rating (Max) | 200mA | Approvals | - |
